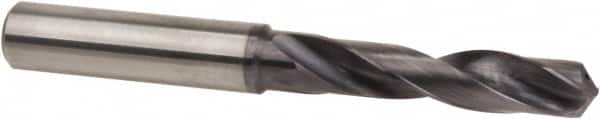

Accupro - 29/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 61706602
Brand: Accupro
Model #:
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4531 |
| Drill Bit Size (Inch) | 29/64 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Decimal Inch) | 2.2640 |
| Overall Length (Decimal Inch) | 4.8030 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Special Point Type |
| Shank Diameter (Inch) | 15/32 |
| Specification Designation | ISO |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Thinning | R-Thinned |
| Drill Bit Grade | High Performance |
