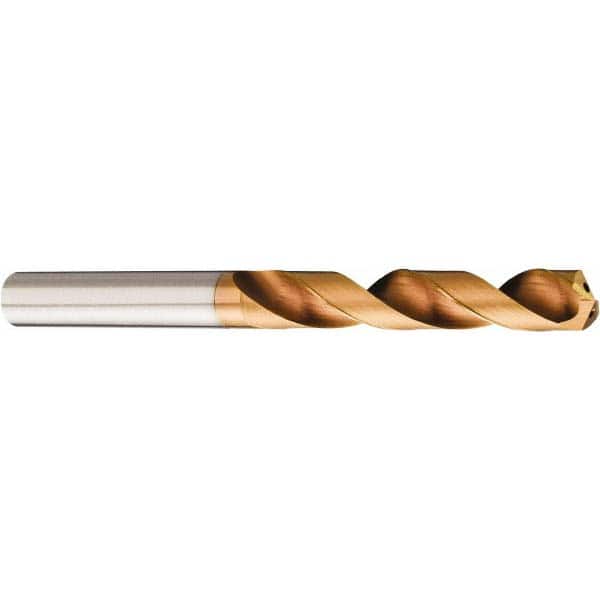

Sandvik Coromant - 9.3mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 54732011
Brand: Sandvik Coromant
Model #: 5748333
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3661 |
| Drill Bit Size (mm) | 9.30 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Specification Designation | ISO |
| Maximum Drilling Depth (mm) | 29.50 |
| Maximum Drilling Depth (Decimal Inch) | 1.1614 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.60 |
| Drill Point Length (Decimal Inch) | 0.0630 |
| Drill Tip Finish/Coating | TiAlN |
| Specification Number | R840-0930-30-A1A 1220 |
| Drill Bit Grade | General Purpose |
| Material Grade | 1220 |
| Series/List | CoroDrill Delta-C R840 |
| Length Type | R840 |
