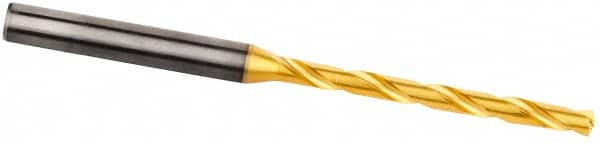

Kennametal - 19.1mm 140° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 76282599
Brand: Kennametal
Model #: 4149869
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 19.10 |
| Drill Bit Size (Decimal Inch) | 0.7520 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 5.8268 |
| Flute Length (mm) | 148.00 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 124.00 |
| Maximum Drilling Depth (Decimal Inch) | 4.8819 |
| Shank Length (mm) | 50 |
| Shank Length (Decimal Inch) | 1.9685 |
| Drill Point Length (mm) | 3.32 |
| Drill Point Length (Decimal Inch) | 0.1307 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.021 to 0.000 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0008 to 0.0000 |
| Specification Number | DIN 6537K |
| Material Grade | KC7325 |
| Series/List | B053A-CPG |
