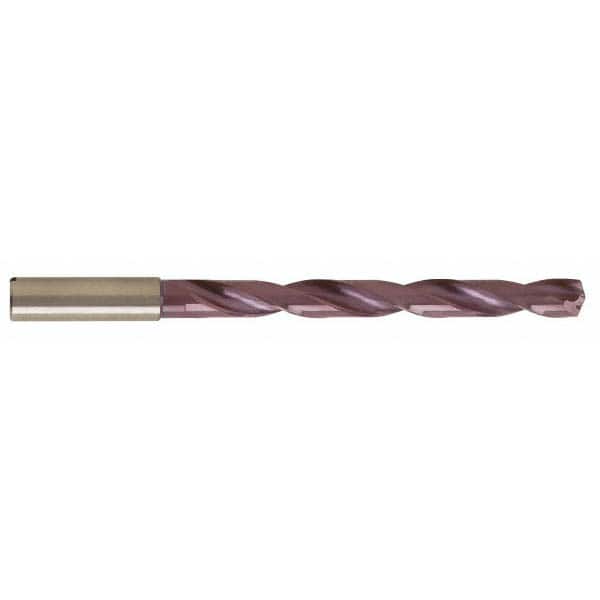

Guhring - 3/4" 140° Solid Carbide Taper Length Drill Bit
Item #: 05790894
Brand: Guhring
Model #: 9055120190500
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 3/4 |
| Drill Bit Size (Decimal Inch) | 0.7500 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | SU Point |
| Flute Length (Decimal Inch) | 7.4803 |
| Overall Length (Decimal Inch) | 9.6063 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Length (Decimal Inch) | 2.1260 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.008 to +0.029 |
| Web Thinning | Web-Thinned |
| Material Grade | Submicron |
| Series/List | 5512 |
