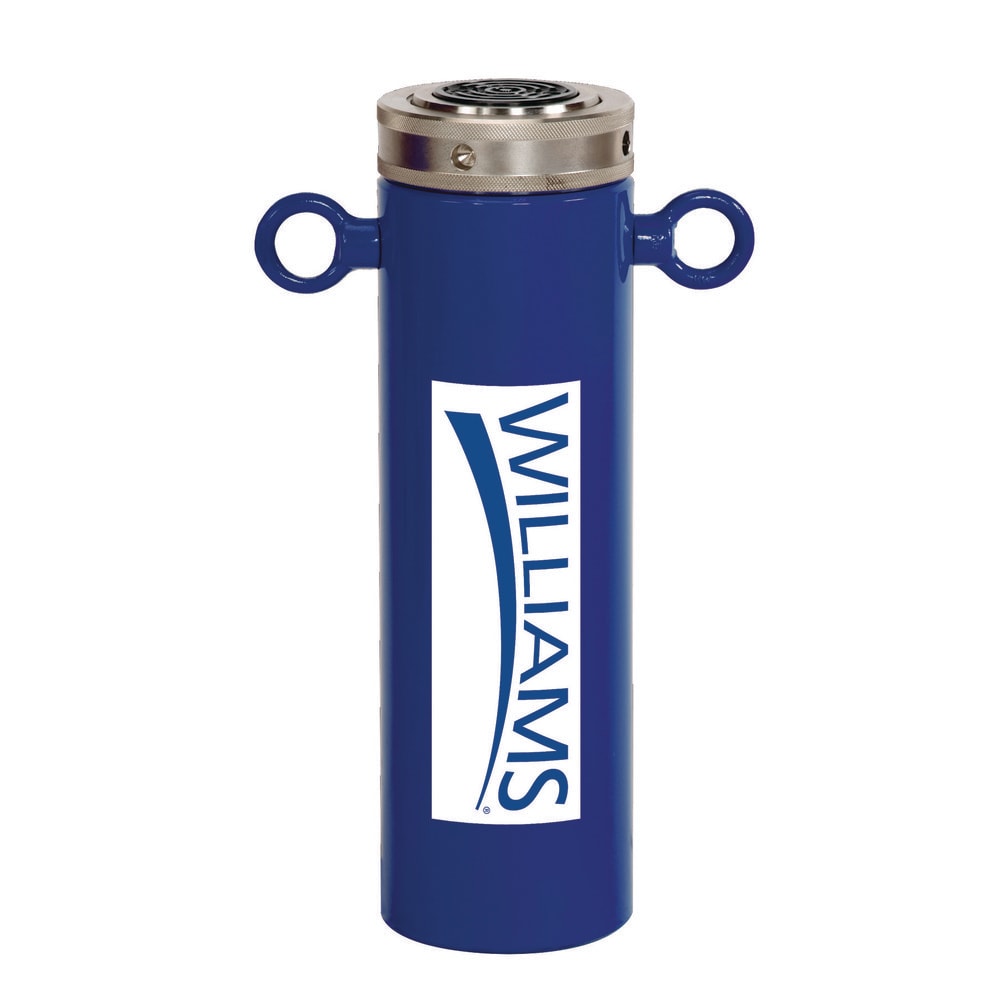

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 100 TON; Stroke Length: 3.94; Piston Stroke (Decimal Inch): 3.94; Oil Capacity: 80.98; Cylinder Effective Area: 80.98; Lowered Height: 9.3
Item #: 54364476
Brand: Williams
Model #: 6CN100T04
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 3.94 |
| Piston Stroke (Decimal Inch) | 3.94 |
| Oil Capacity | 80.98 |
| Cylinder Effective Area | 80.98 |
| Lowered Height | 9.3 |
| Retracted Length | 9.3 |
| Extended Length | 13.3 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 6.5 |
| Rod Diameter | 5.1 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .68 |
| Saddle Diameter | 2.95 |
| Y Center Hole Diameter | 5.1 |
| Maximum Height (Inch) | 13.3 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
