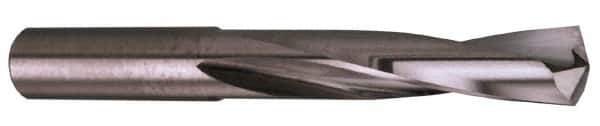

M.A. Ford - 13.5001mm 118° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 00655803
Brand: M.A. Ford
Model #: 22653150
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Size (mm) | 13.50 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 54.00 |
| Overall Length (mm) | 107.00 |
| Point Type | Faceted |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.013 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Specification Number | DIN 6539 |
| Web Thinning | Web-Thinned |
| Series/List | 226 |
