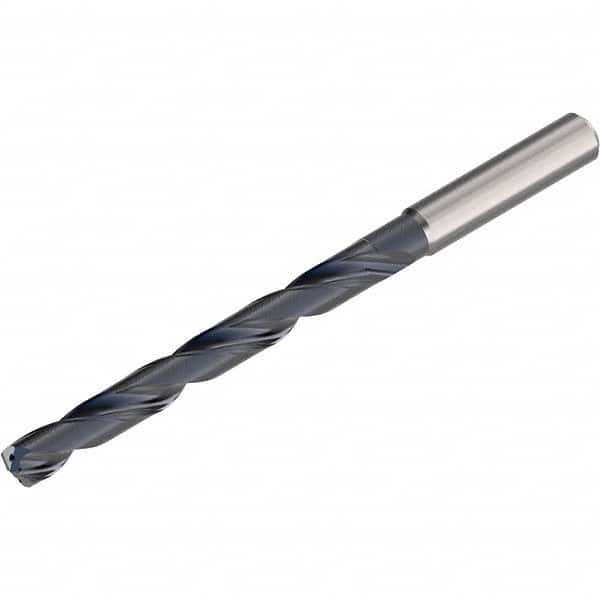

Seco - 9.8mm 140° Solid Carbide Taper Length Drill Bit
Item #: 96229950
Brand: Seco
Model #: 03295047
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.80 |
| Drill Bit Size (Decimal Inch) | 0.3859 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (mm) | 95.00 |
| Overall Length (mm) | 139.00 |
| Shank Diameter (mm) | 10.00 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 80.00 |
| Shank Length (mm) | 40 |
