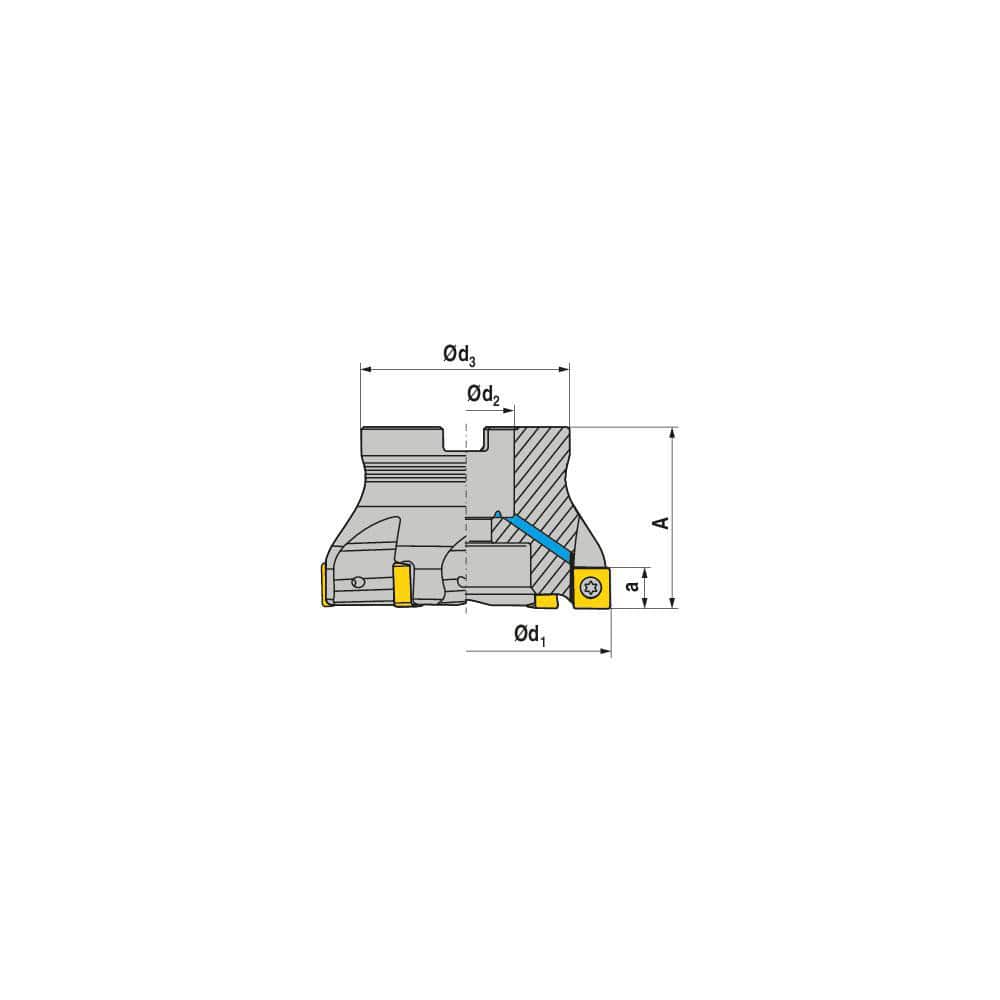

Indexable Square-Shoulder Face Mill: A491.63.R.05-12, 22.0000″ Arbor Hole Dia, Uses 5, SNHU 1204 Inserts, Through Coolant, Series A491-12
Item #: 19876465
Brand: Ceratizit
Model #: 50775063
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | SNHU 1204 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | A491 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | A491-12 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Hub Diameter (mm) | 48.00 |
| Hub Diameter (Decimal Inch) | 48.0000 |
| Hub Diameter (Inch) | 48 |
| Maximum RPM | 8500 |
| Tool Application | Facing; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
