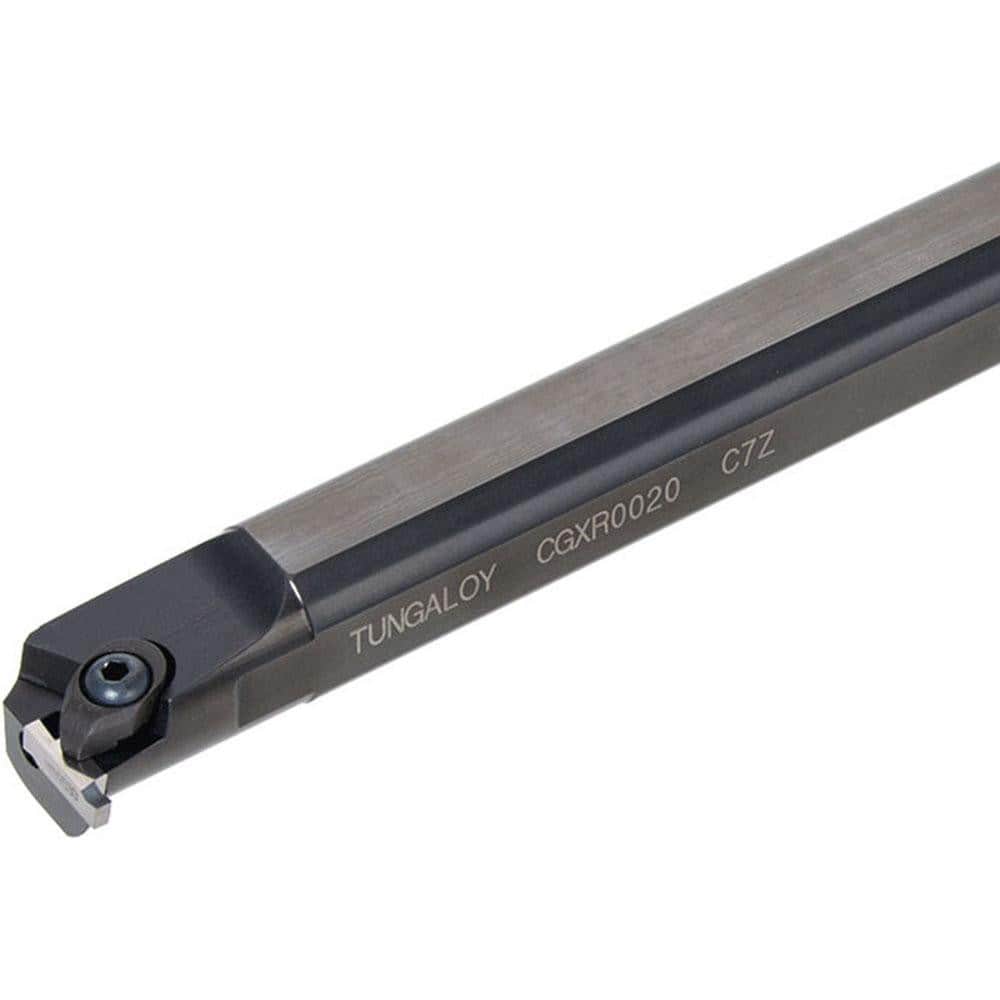

Indexable Grooving Toolholder: CGXR16SC, Uses 52 Inserts, No
Item #: 19872464
Brand: Tungaloy
Model #: 6801812
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 52 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | CGX |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 52 |
| Shank Height (mm) | 15.00 |
| Series | CGX |
| Overall Length (mm) | 200.00 |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (mm) | 11.30 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 20.0000 |
| Head Height (Decimal Inch) | 15.0000 |
| Head Height (Inch) | 15 |
| Head Height (mm) | 15.00 |
| Head Length (mm) | 24.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Solid Carbide |
| Coolant Through | No |
