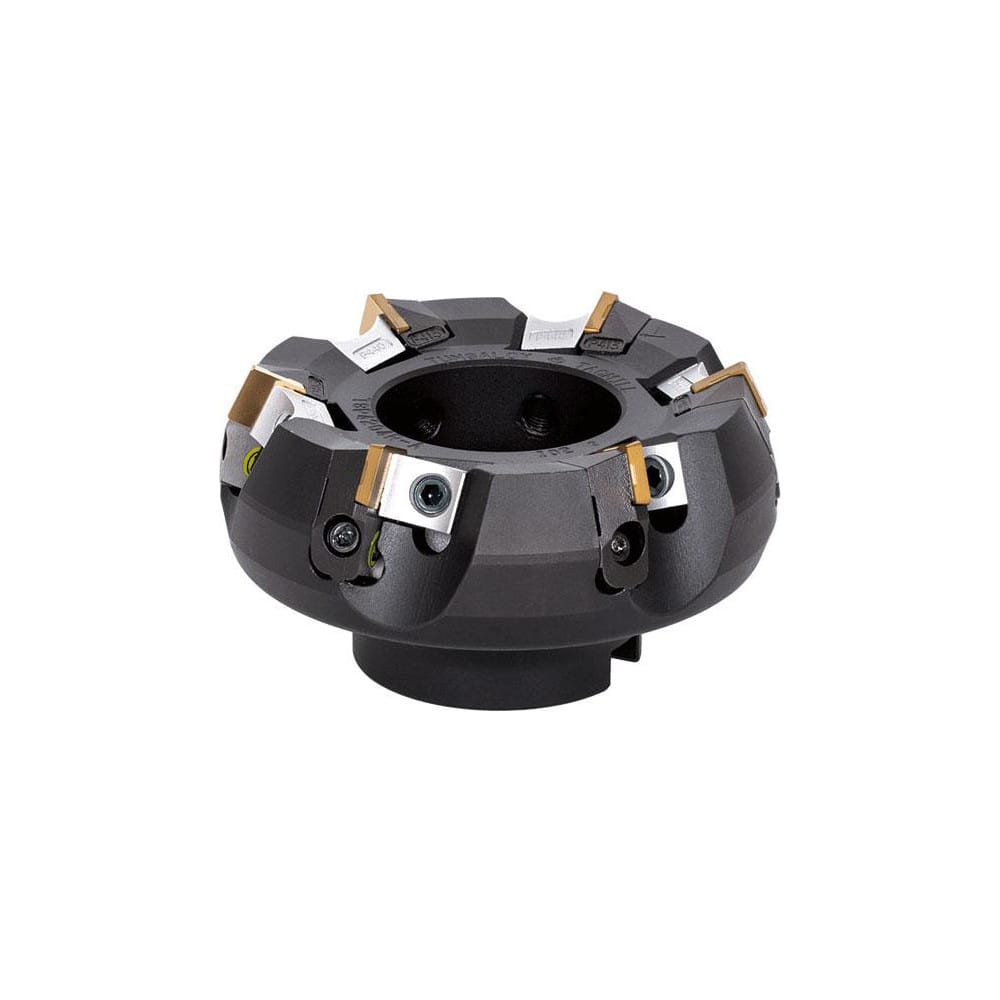

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 80.00; Maximum Cutting Diameter (mm): 95.00; Maximum Depth of Cut (mm): 6.00; Arbor Hole Diameter (mm): 25.40; Lead Angle: 65; Compatible Insert Size Code: SPKN42ZTR; Cutter Style: TGP;
Item #: 19860774
Brand: Tungaloy
Model #: 6807964
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 95.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Lead Angle | 65 |
| Compatible Insert Size Code | SPKN42ZTR |
| Cutter Style | TGP |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 7 |
| Series | TGP |
| Keyway Width (mm) | 9.50 |
| Keyway Width (Inch) | 9-1/2 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
