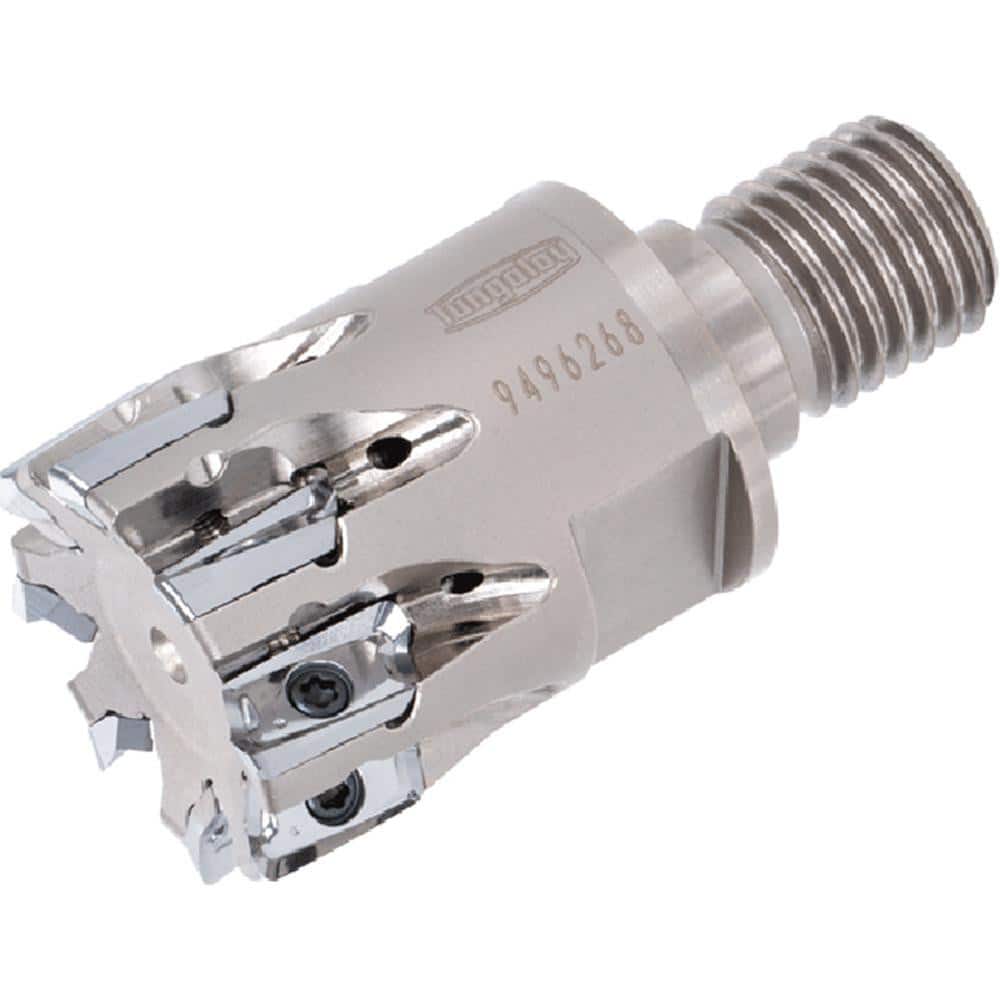

Indexable Square-Shoulder End Mill: HPAV12M040M16R06, M16 Modular Connection, Modular Shank Uses 6, Normal Pressure, 63.00 mm OAL
Item #: 19836568
Brand: Tungaloy
Model #: 6839221
Product Specifications
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 11.50 |
| Cutter Style | HPAV |
| Shank Type | Modular |
| Maximum Ramping Angle | 2 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 63.00 |
| Tool Material | Steel |
| Series | HPAV |
| Lead Angle | 90 |
| Shank Length (mm) | 40.00 |
| Head Length (mm) | 40.00 |
| Modular Connection Size | M16 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 40.000 |
| Number Of Flutes | 6 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Normal Pressure |
