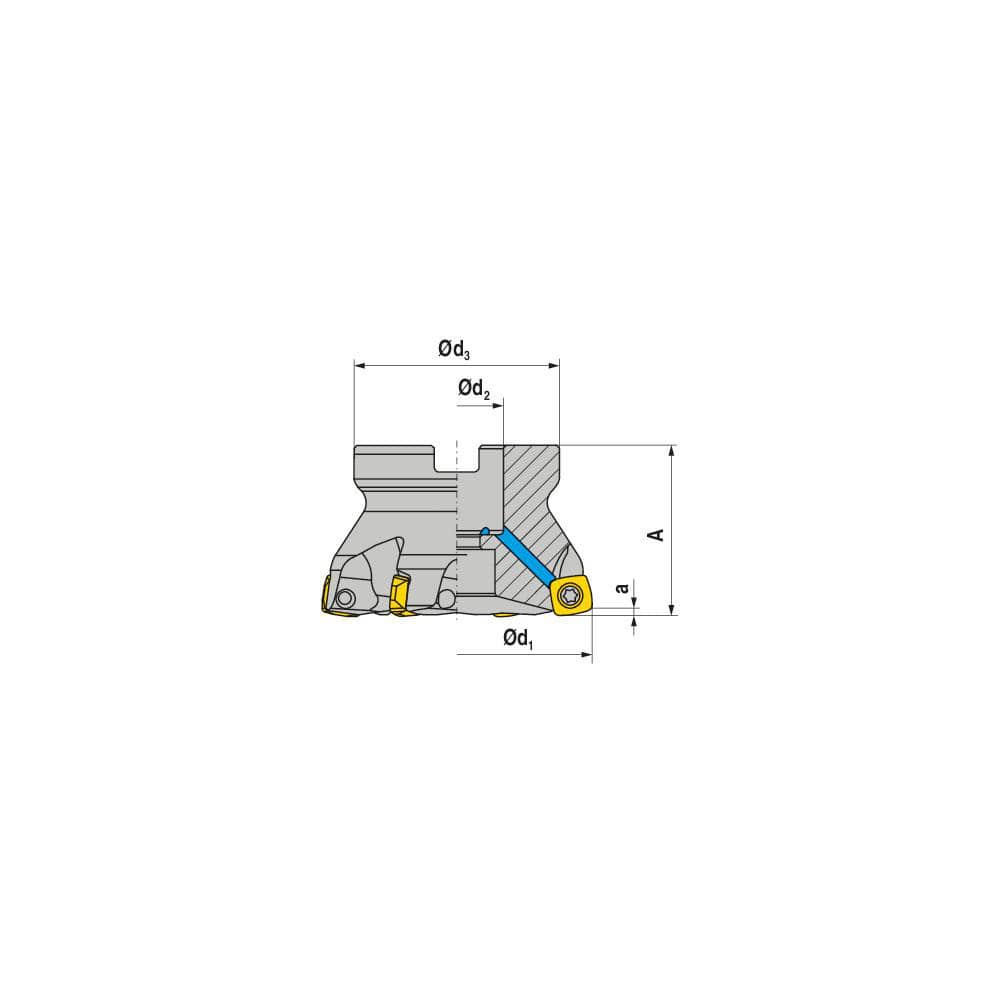

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 70.00 mm; Maximum Cutting Diameter: 80.00 mm; Maximum Depth Of Cut: 2.00 mm; Arbor Hole Diameter (mm): 27.00; Compatible Insert Size Code: XOLX 1204..; Maximum Ramping Angle: 1.3; Series: AHFC-12;
Item #: 19726520
Brand: Ceratizit
Model #: 50683080
Product Specifications
| Minimum Cutting Diameter | 70.00 mm |
| Maximum Cutting Diameter | 80.00 mm |
| Maximum Depth Of Cut | 2.00 mm |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | XOLX 1204.. |
| Maximum Ramping Angle | 1.3 |
| Series | AHFC-12 |
| Cutter Style | AHFC |
| Number of Cutter Inserts | 7 |
| Through Coolant | Normal Pressure |
| Maximum Body Diameter | 80.00 mm |
| Overall Height | 50.00 mm |
| Maximum Rpm | 14000.000 |
| Tool Application | Face Milling |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp Screw |
| Number of Flutes | 7 |
