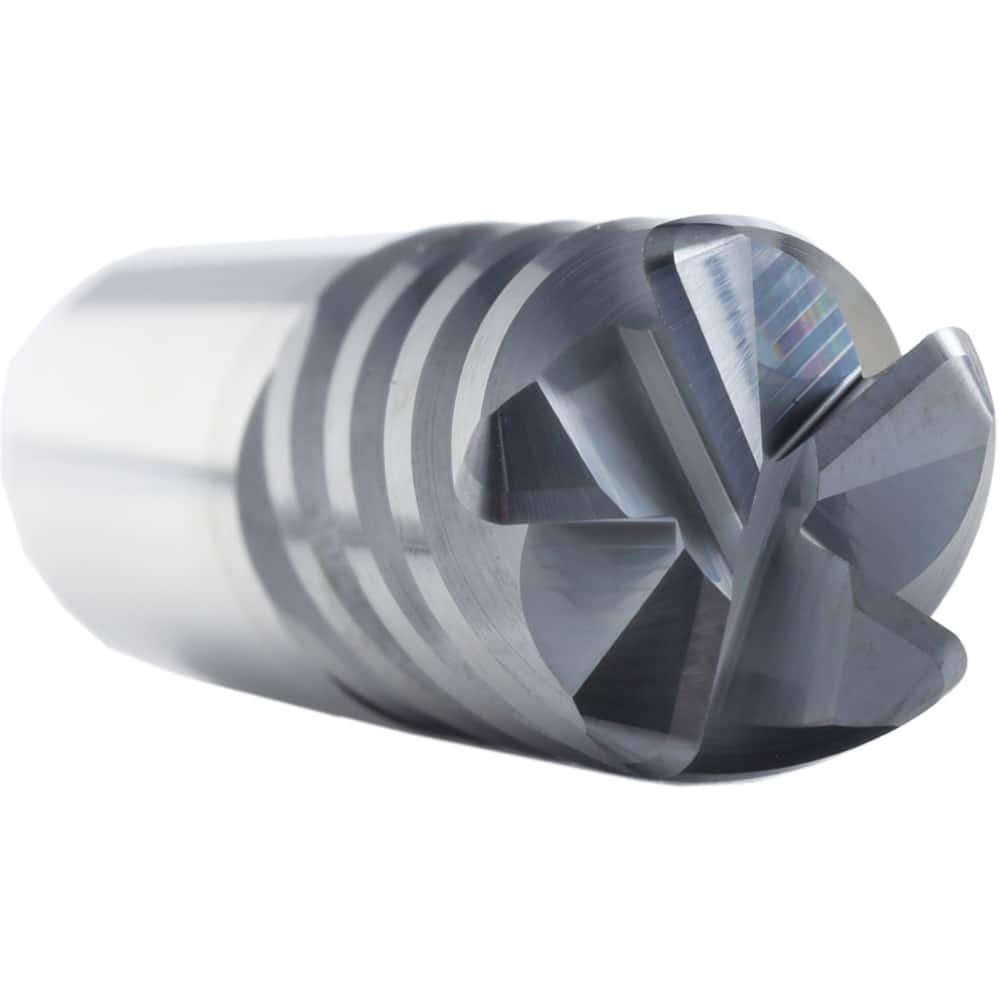

Supermill - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 7/32 ; Mill Diameter (Decimal Inch): 0.2188 ; End Type: Corner Radius ; Number of Flutes: 5 ; Material: Solid Carbide ; Finish/Coating: AlTiN
Item #: 19698406
Brand: Supermill
Model #: SM5F218A-015
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 7/32 ; Mill Diameter (Decimal Inch): 0.2188 ; End Type: Corner Radius ; Number of Flutes: 5 ; Material: Solid Carbide ; Finish/Coating: AlTiN
| Mill Diameter (Inch) | 7/32 |
| Mill Diameter (Decimal Inch) | 0.2188 |
| End Type | Corner Radius |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.75 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Series/List | SM5F-NB |
| Chipbreaker | No |
