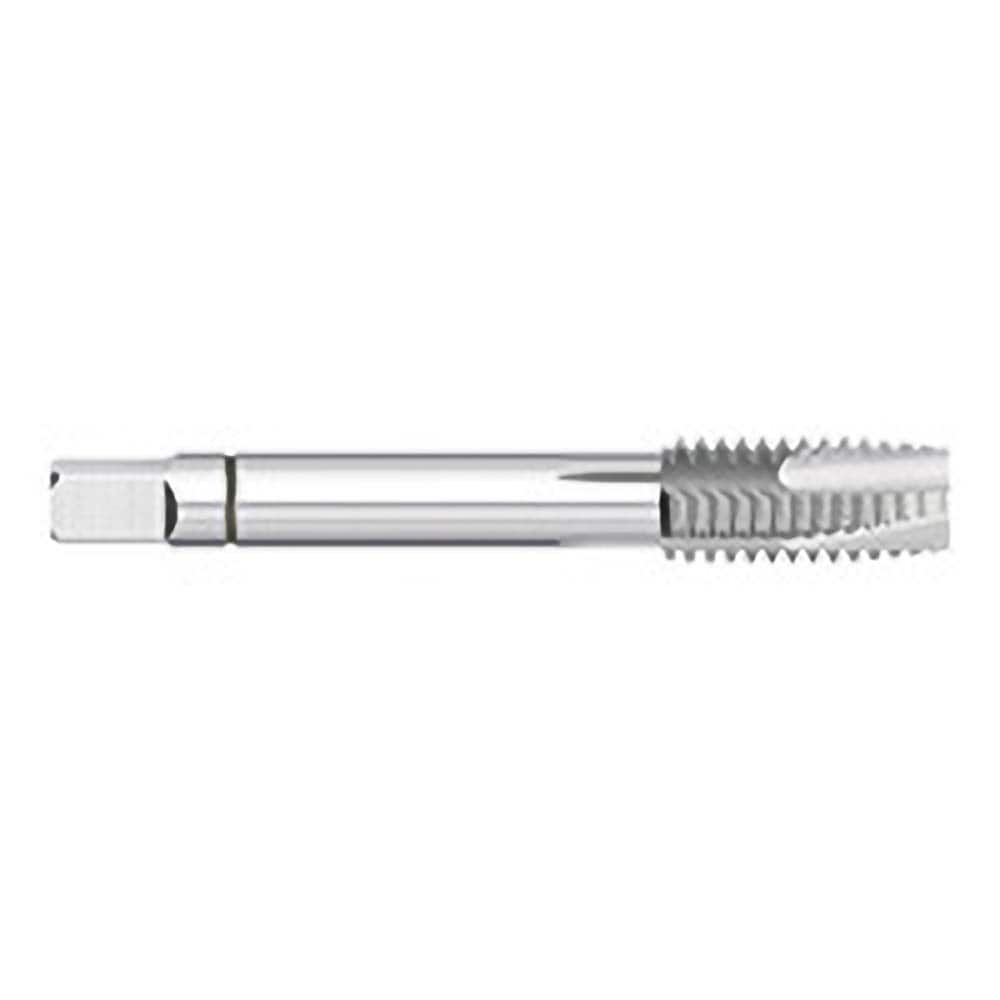

Titan USA - Spiral Point Taps; Thread Size (mm): M12x1.75 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D3 ; Finish/Coating: Uncoated
Item #: 19621317
Brand: Titan USA
Model #: TT98234
Product Specifications
Spiral Point Taps; Thread Size (mm): M12x1.75 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D3 ; Finish/Coating: Uncoated
| Thread Size (mm) | M12x1.75 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D3 |
| Finish/Coating | Uncoated |
| Material | Powdered Metal |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.37500 |
| Overall Length (Inch) | 3-3/8 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Series/List | 711 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Length (Inch) | 7/16 |
| Square Size (Decimal Inch) | 0.2750 |
