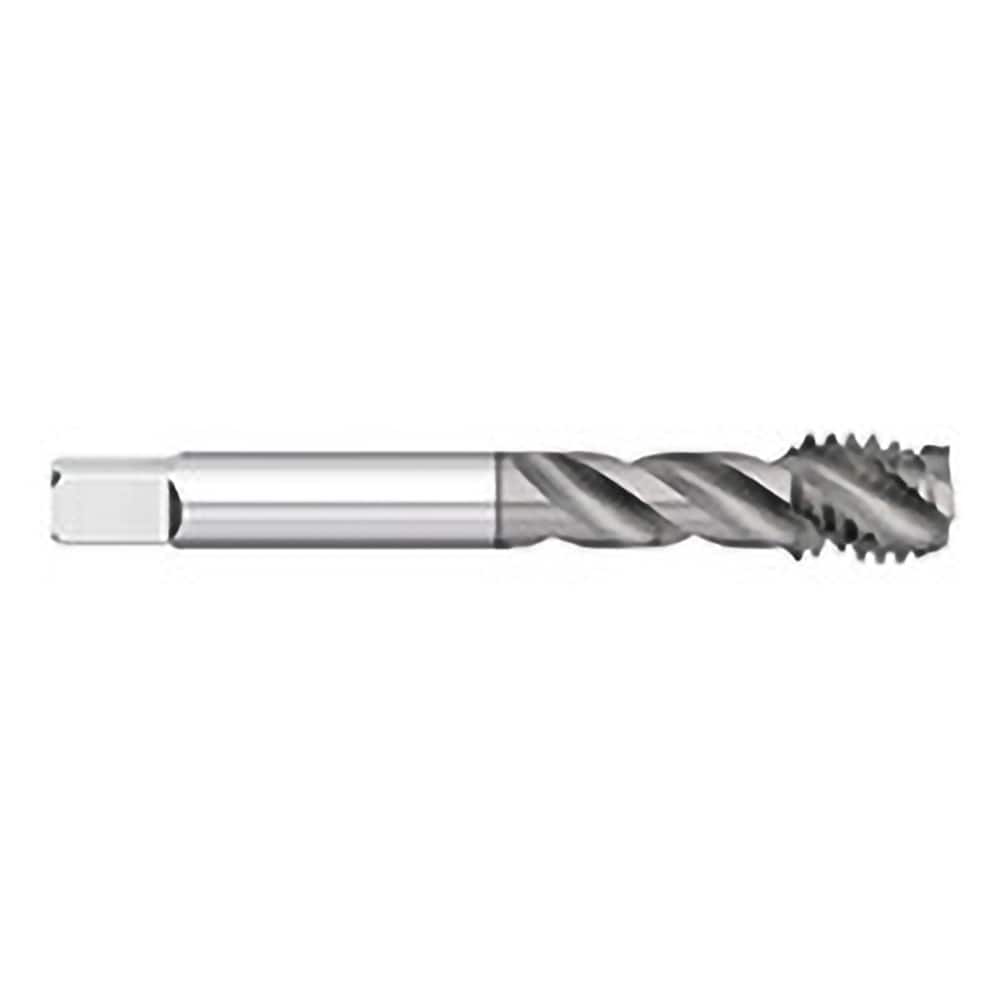

Titan USA - Spiral Flute Taps; Thread Size (mm): M16x2.00 ; Chamfer: Semi-Bottoming ; Class of Fit: 6H ; Thread Limit: D3 ; Number of Flutes: 4 ; Material: Powdered Metal
Item #: 19620566
Brand: Titan USA
Model #: TT98885
Product Specifications
Spiral Flute Taps; Thread Size (mm): M16x2.00 ; Chamfer: Semi-Bottoming ; Class of Fit: 6H ; Thread Limit: D3 ; Number of Flutes: 4 ; Material: Powdered Metal
| Thread Size (mm) | M16x2.00 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6H |
| Thread Limit | D3 |
| Number of Flutes | 4 |
| Material | Powdered Metal |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.81250 |
| Overall Length (Inch) | 3-13/16 |
| Helix Angle | 45.00 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.6400 |
| Thread Length (Inch) | 41/64 |
| Flute Type | Spiral |
| Series/List | 719 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 9/16 |
