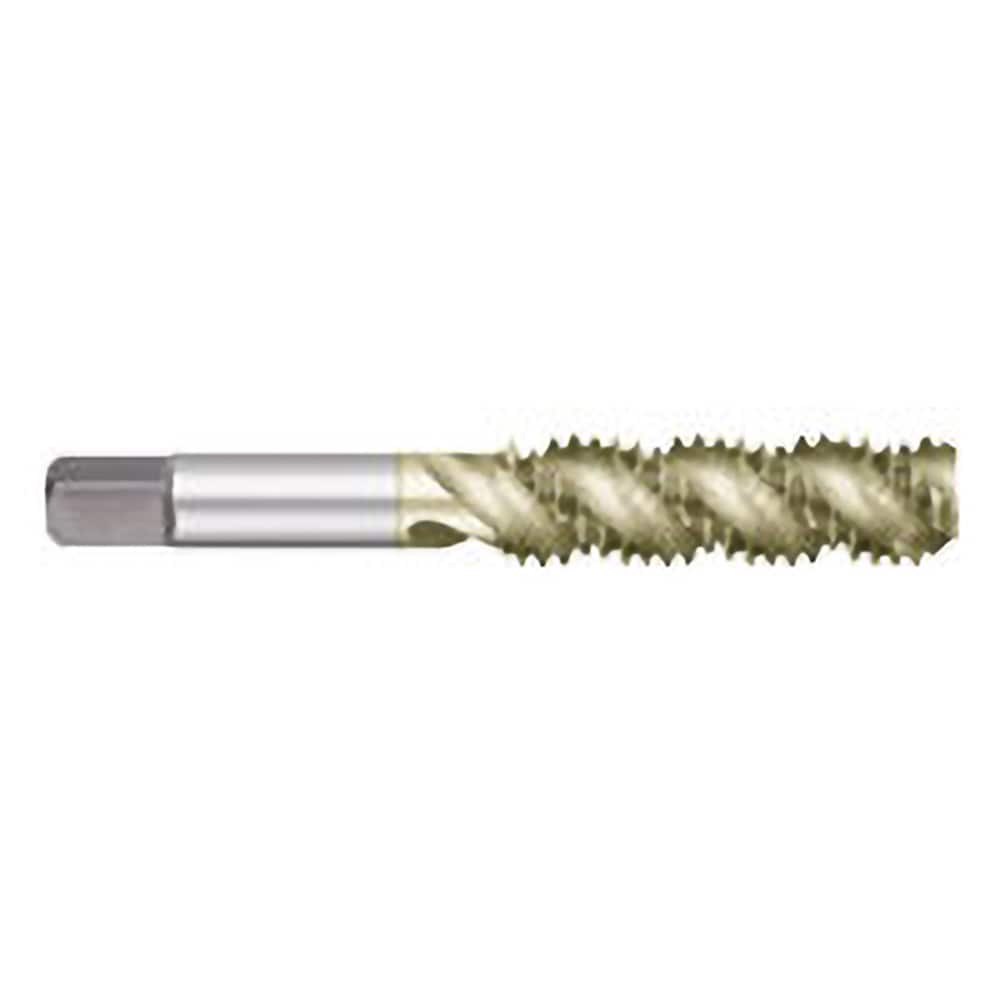

Titan USA - Spiral Flute Taps; Thread Size (mm): M8x1.25 ; Chamfer: Semi-Bottoming ; Class of Fit: 6H ; Thread Limit: D5 ; Number of Flutes: 3 ; Material: High Speed Steel
Item #: 19619998
Brand: Titan USA
Model #: TT89213
Product Specifications
Spiral Flute Taps; Thread Size (mm): M8x1.25 ; Chamfer: Semi-Bottoming ; Class of Fit: 6H ; Thread Limit: D5 ; Number of Flutes: 3 ; Material: High Speed Steel
| Thread Size (mm) | M8x1.25 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | ZrN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.71880 |
| Overall Length (Inch) | 2-23/32 |
| Helix Angle | 52.00 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
| Flute Type | Spiral |
| Series/List | 892 |
| Shank Diameter (Decimal Inch) | 0.2380 |
| Square Length (Inch) | 3/8 |
