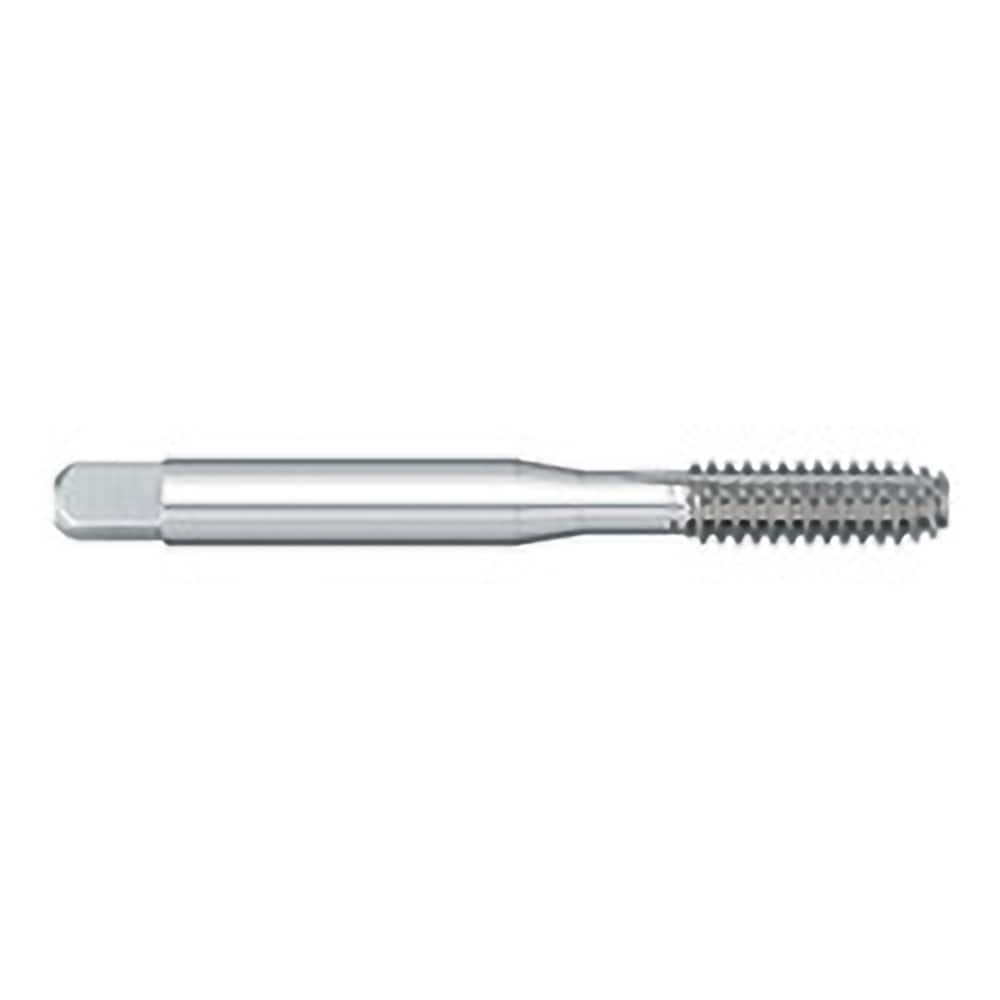

Titan USA - Thread Forming Taps; Thread Size (Inch): 1/4-28 ; Class of Fit: 2B ; Thread Limit: H6 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19619808
Brand: Titan USA
Model #: TT88361
Product Specifications
Thread Forming Taps; Thread Size (Inch): 1/4-28 ; Class of Fit: 2B ; Thread Limit: H6 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | 1/4-28 |
| Class of Fit | 2B |
| Thread Limit | H6 |
| Chamfer | 1.5P |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Tap Type | Thread Forming |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Length (Inch) | 5/16 |
| Through Coolant | NonThrough Coolant |
