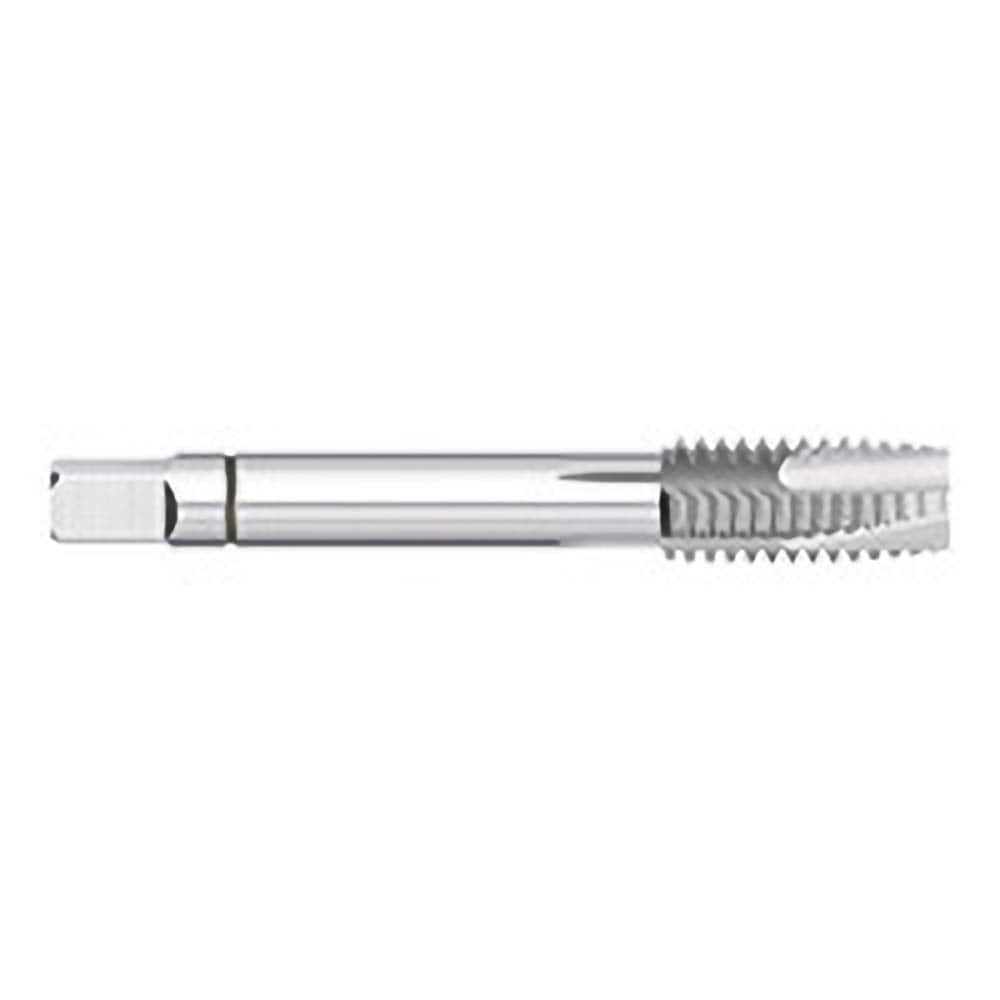

Titan USA - Spiral Point Taps; Thread Size (mm): M14x2.00 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D3 ; Finish/Coating: Uncoated
Item #: 19619618
Brand: Titan USA
Model #: TT98236
Product Specifications
Spiral Point Taps; Thread Size (mm): M14x2.00 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D3 ; Finish/Coating: Uncoated
| Thread Size (mm) | M14x2.00 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D3 |
| Finish/Coating | Uncoated |
| Material | Powdered Metal |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.59380 |
| Overall Length (Inch) | 3-19/32 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Series/List | 711 |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Square Length (Inch) | 1/2 |
| Square Size (Decimal Inch) | 0.3220 |
