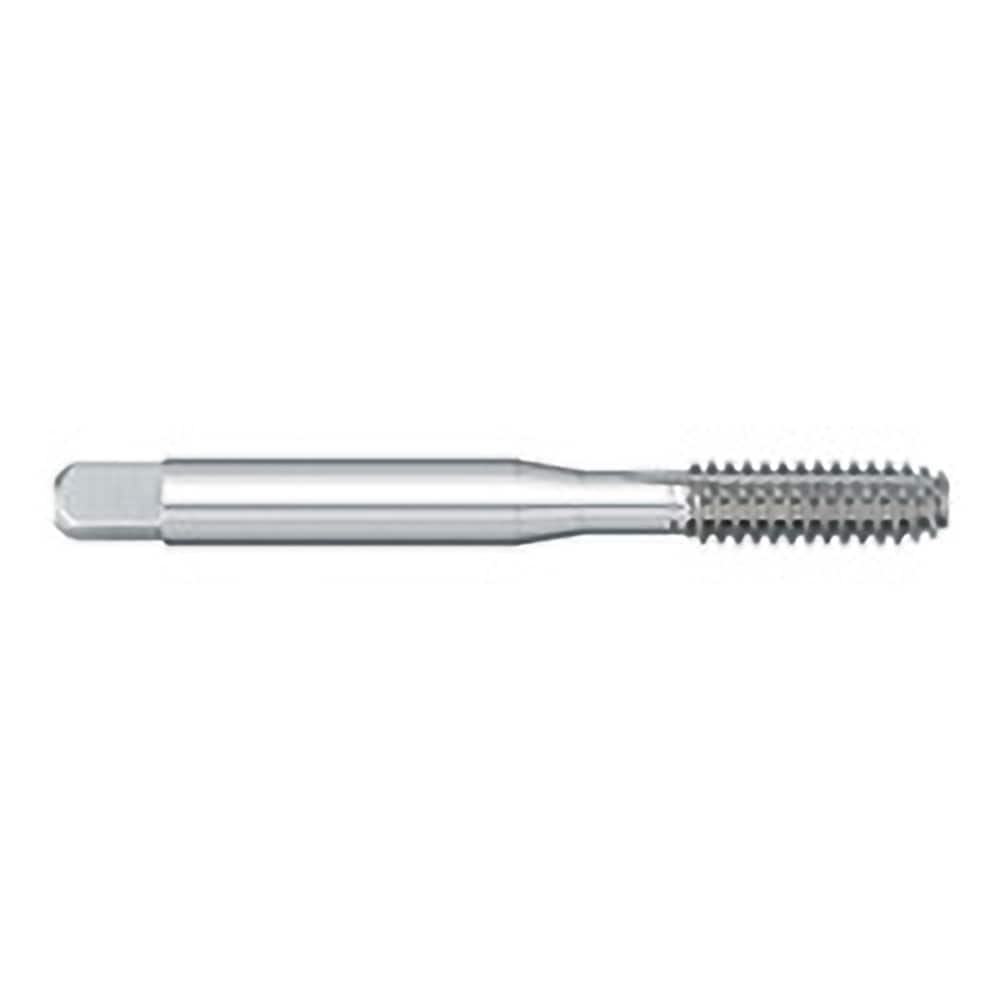

Titan USA - Thread Forming Taps; Thread Size (Inch): #8-32 ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19619311
Brand: Titan USA
Model #: TT88337
Product Specifications
Thread Forming Taps; Thread Size (Inch): #8-32 ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | #8-32 |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Chamfer | 1.5P |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.12500 |
| Overall Length (Inch) | 2-1/8 |
| Tap Type | Thread Forming |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Through Coolant | NonThrough Coolant |
