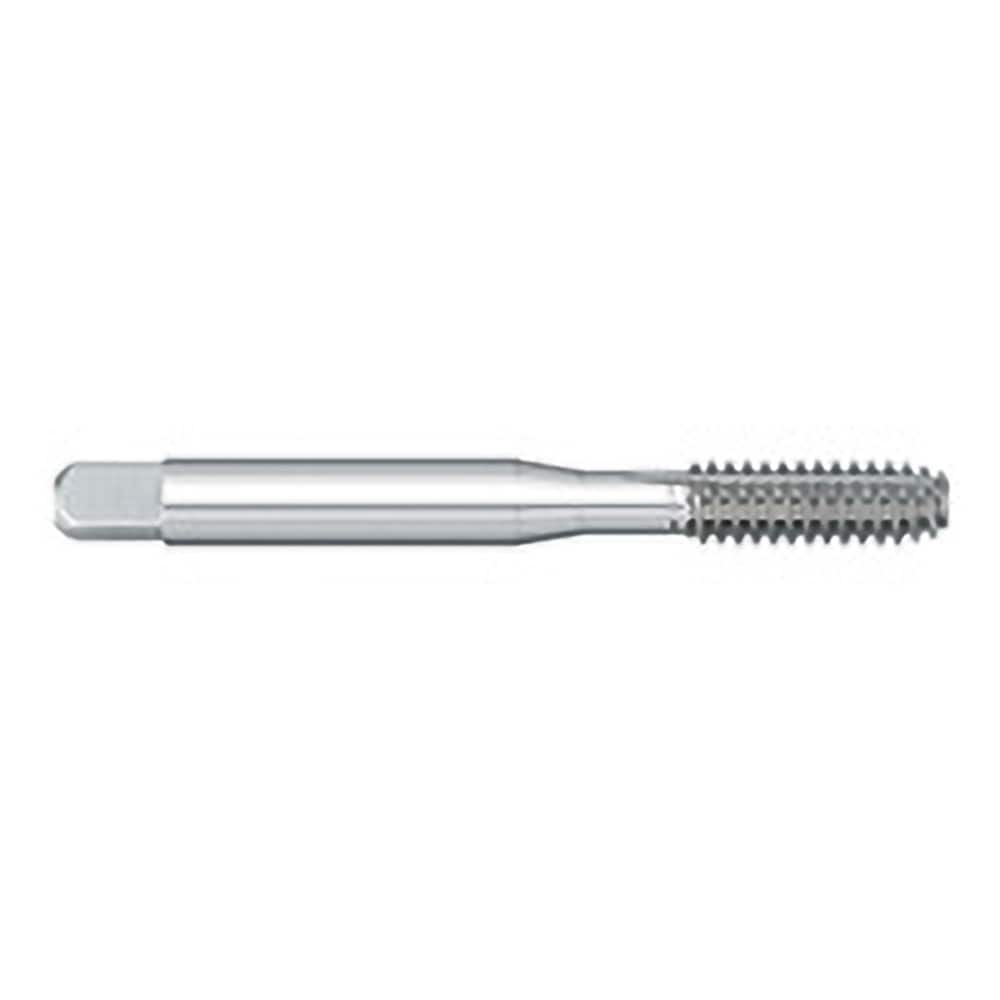

Titan USA - Thread Forming Taps; Thread Size (Inch): 5/16-18 ; Class of Fit: 2B ; Thread Limit: H8 ; Chamfer: Bottoming ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19618024
Brand: Titan USA
Model #: TT82884
Product Specifications
Thread Forming Taps; Thread Size (Inch): 5/16-18 ; Class of Fit: 2B ; Thread Limit: H8 ; Chamfer: Bottoming ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | 5/16-18 |
| Class of Fit | 2B |
| Thread Limit | H8 |
| Chamfer | Bottoming |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.71880 |
| Overall Length (Inch) | 2-23/32 |
| Tap Type | Thread Forming |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (Inch) | 3/8 |
| Through Coolant | NonThrough Coolant |
