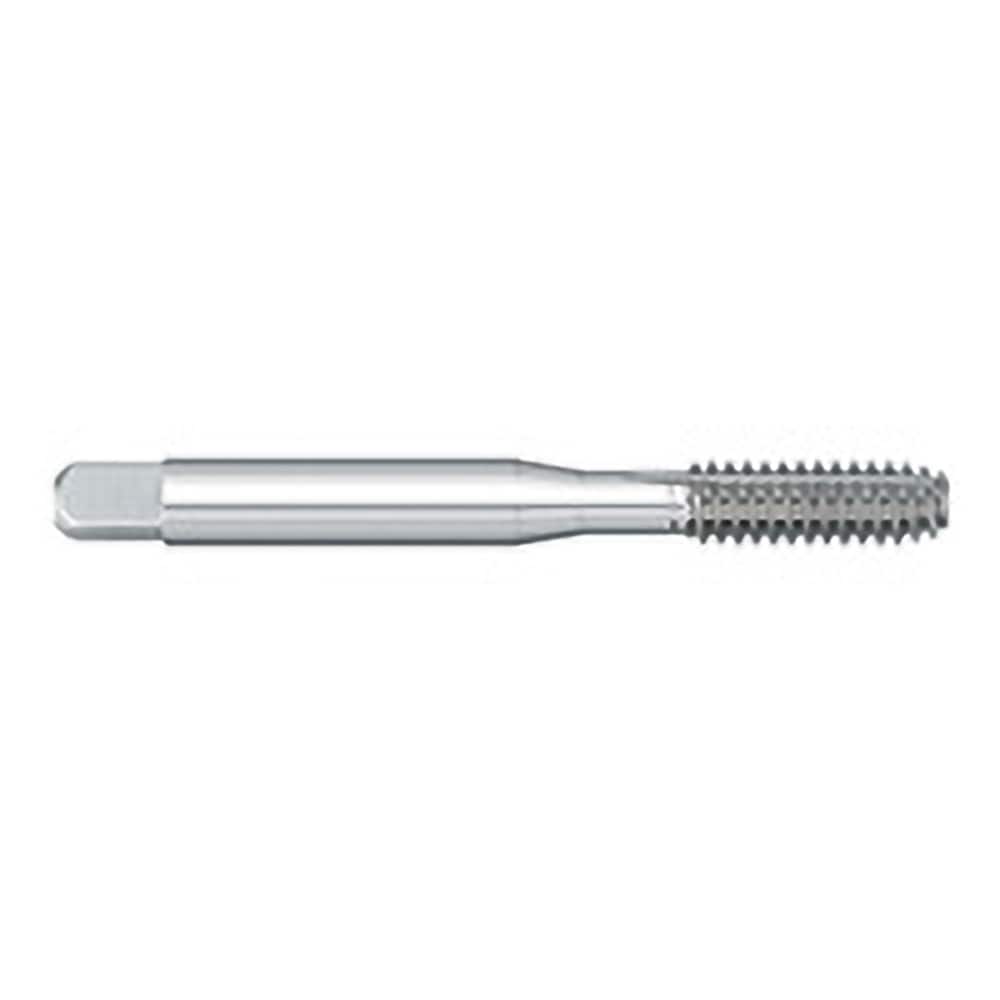

Titan USA - Thread Forming Taps; Thread Size (Inch): 5/16-24 ; Thread Limit: H7 ; Chamfer: Bottoming ; Finish/Coating: Uncoated ; Material: High Speed Steel ; Overall Length (Decimal Inch): 2.71880
Item #: 19617984
Brand: Titan USA
Model #: TT82888
Product Specifications
Thread Forming Taps; Thread Size (Inch): 5/16-24 ; Thread Limit: H7 ; Chamfer: Bottoming ; Finish/Coating: Uncoated ; Material: High Speed Steel ; Overall Length (Decimal Inch): 2.71880
| Thread Size (Inch) | 5/16-24 |
| Thread Limit | H7 |
| Chamfer | Bottoming |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.71880 |
| Overall Length (Inch) | 2-23/32 |
| Tap Type | Thread Forming |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (Inch) | 3/8 |
| Through Coolant | NonThrough Coolant |
