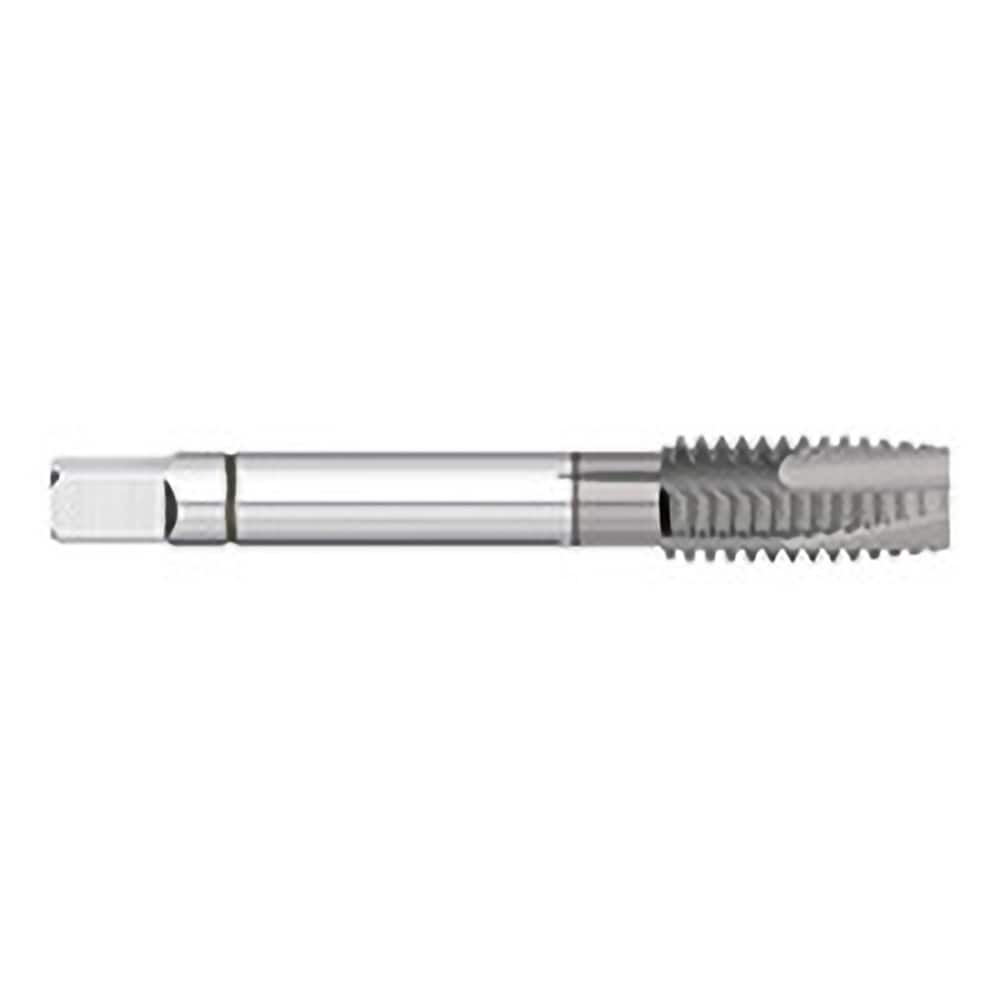

Titan USA - Spiral Point Taps; Thread Size (Inch): 3/4-10 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: TiCN
Item #: 19616952
Brand: Titan USA
Model #: TT97999
Product Specifications
Spiral Point Taps; Thread Size (Inch): 3/4-10 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: TiCN
| Thread Size (Inch) | 3/4-10 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Finish/Coating | TiCN |
| Material | Powdered Metal |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.25000 |
| Overall Length (Inch) | 4-1/4 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Series/List | 778 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Length (Inch) | 11/16 |
| Square Size (Decimal Inch) | 0.4420 |
