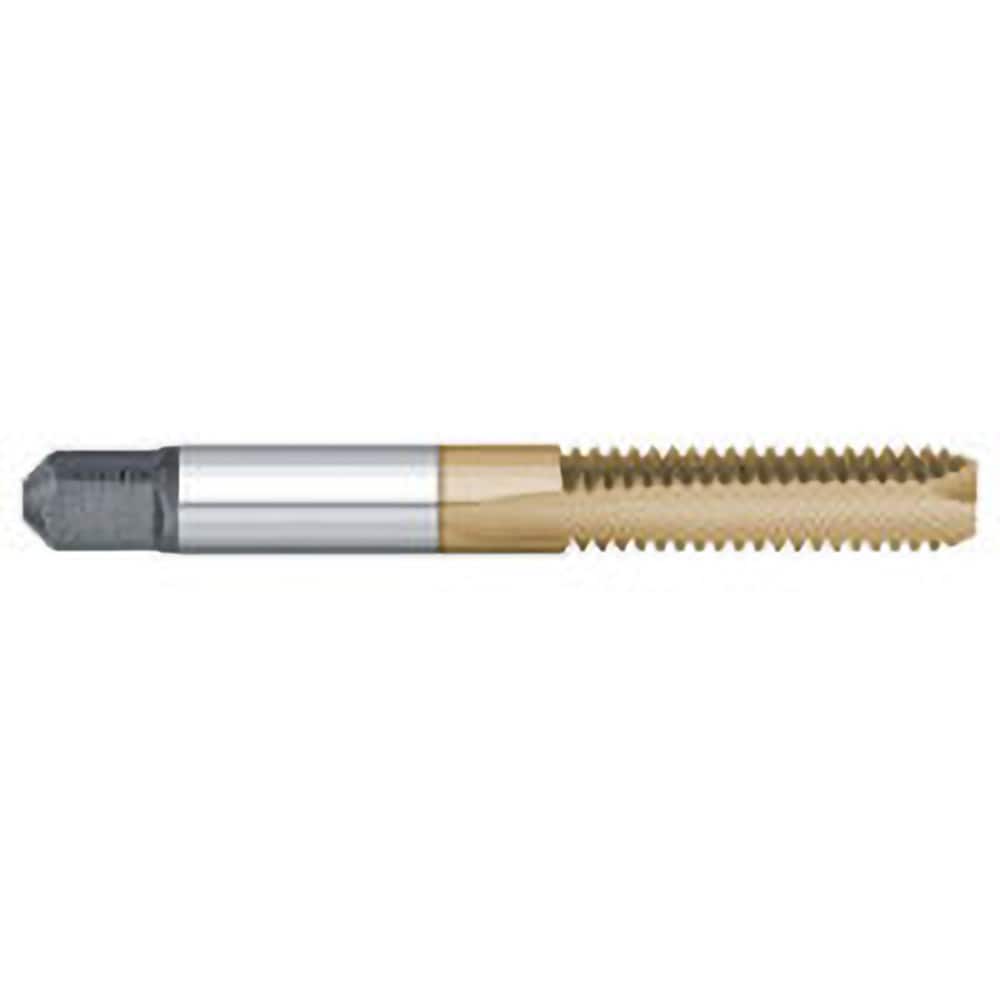

Titan USA - Spiral Point Taps; Thread Size (Inch): #8-32 ; Number of Flutes: 2 ; Chamfer: Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H2 ; Finish/Coating: TiN
Item #: 19616895
Brand: Titan USA
Model #: TT92230
Product Specifications
Spiral Point Taps; Thread Size (Inch): #8-32 ; Number of Flutes: 2 ; Chamfer: Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H2 ; Finish/Coating: TiN
| Thread Size (Inch) | #8-32 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Class of Fit | 2B/3B |
| Thread Limit | H2 |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.12500 |
| Overall Length (Inch) | 2-1/8 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Series/List | 756 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Square Size (Decimal Inch) | 0.1310 |
