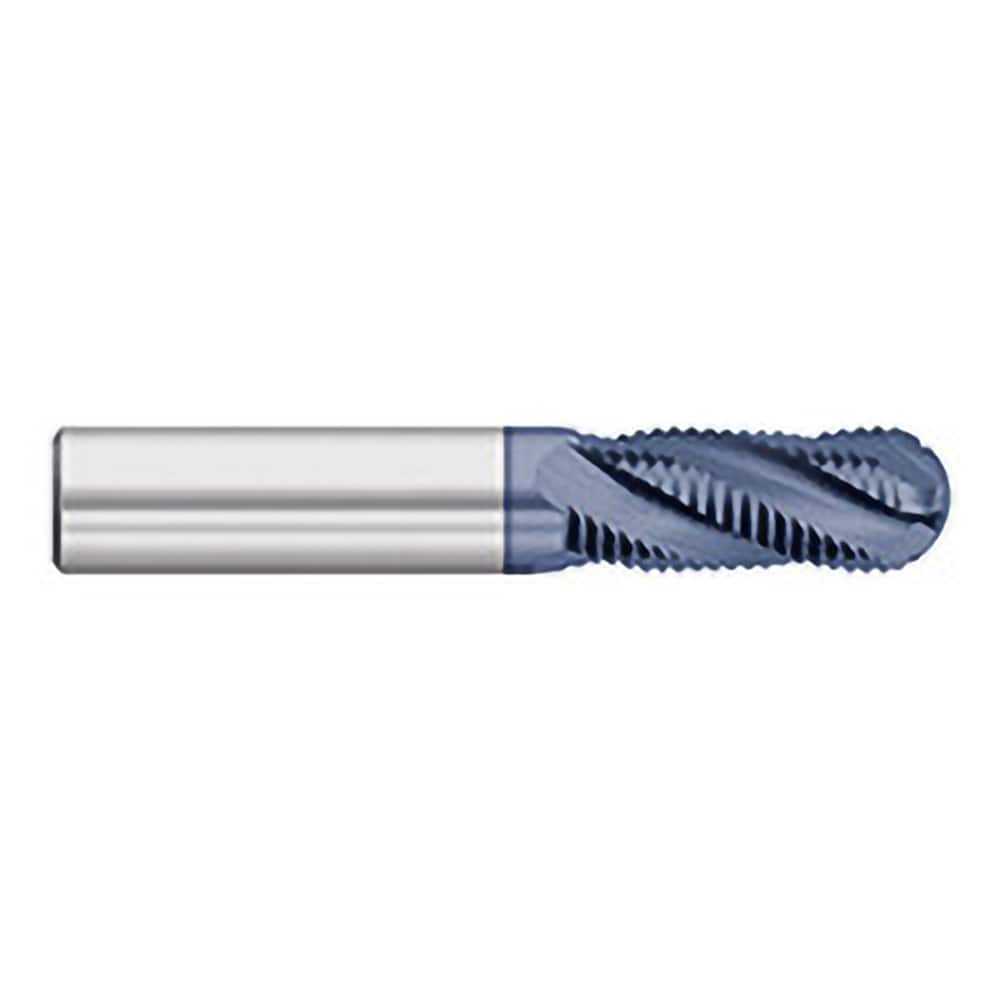

Roughing End Mills; Mill Diameter (Inch): 3/8; Mill Diameter (Decimal Inch): 0.3750; Number of Flutes: 4; Pitch: Fine; Length of Cut (Inch): 1.0000; Length of Cut (Decimal Inch): 1.0000; Shank Diameter (Inch): 0.3750; 3/8; Shank Diameter (mm): 0.3750; Sha
Item #: 19616754
Brand: Titan USA
Model #: TC29924
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 4 |
| Pitch | Fine |
| Length of Cut (Inch) | 1.0000 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 0.3750; 3/8 |
| Shank Diameter (mm) | 0.3750 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Center Cutting |
| Helix Angle | 30.00 |
| Single or Double End | Ball; Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Standard |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.50000 |
| Series/List | 299 |
