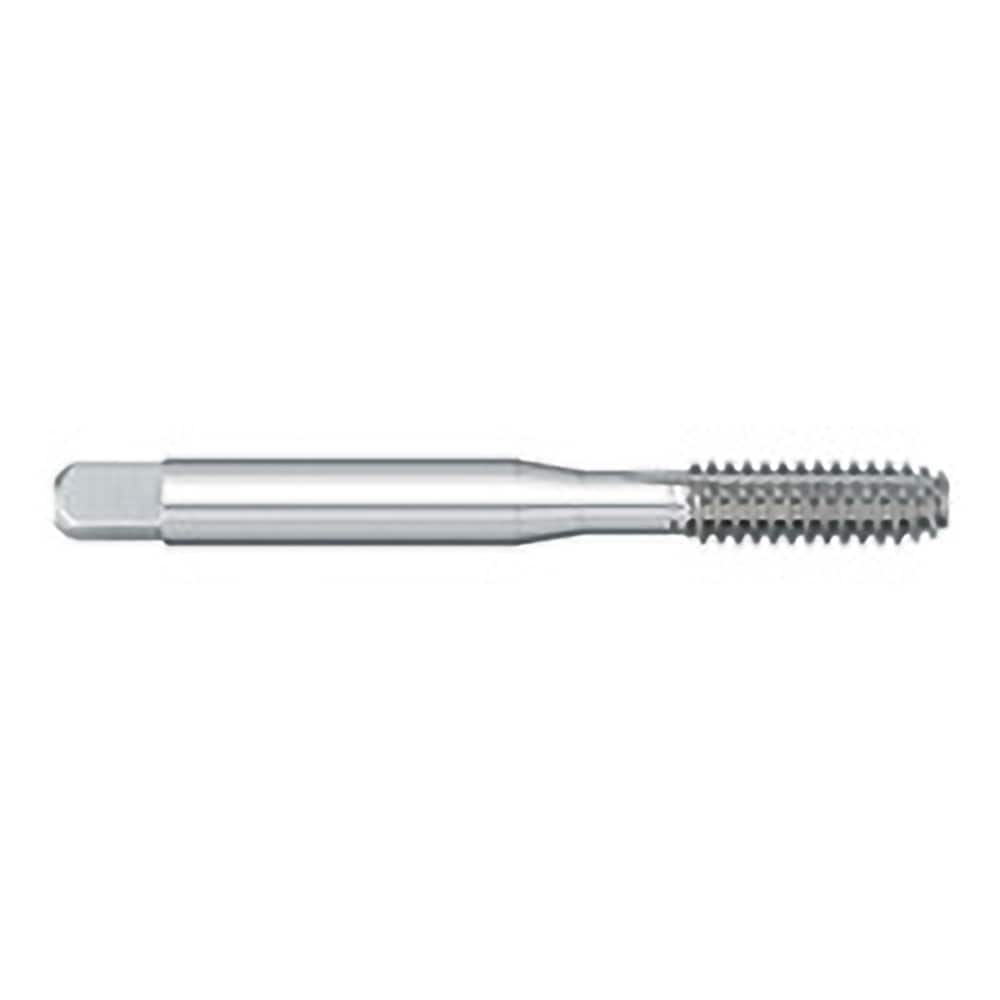

Titan USA - Thread Forming Taps; Thread Size (mm): M4x0.70 ; Class of Fit: 6H ; Thread Limit: D7 ; Chamfer: Bottoming ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19616101
Brand: Titan USA
Model #: TT89804
Product Specifications
Thread Forming Taps; Thread Size (mm): M4x0.70 ; Class of Fit: 6H ; Thread Limit: D7 ; Chamfer: Bottoming ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (mm) | M4x0.70 |
| Class of Fit | 6H |
| Thread Limit | D7 |
| Chamfer | Bottoming |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.12500 |
| Overall Length (Inch) | 2-1/8 |
| Tap Type | Thread Forming |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Series/List | 898 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Through Coolant | NonThrough Coolant |
