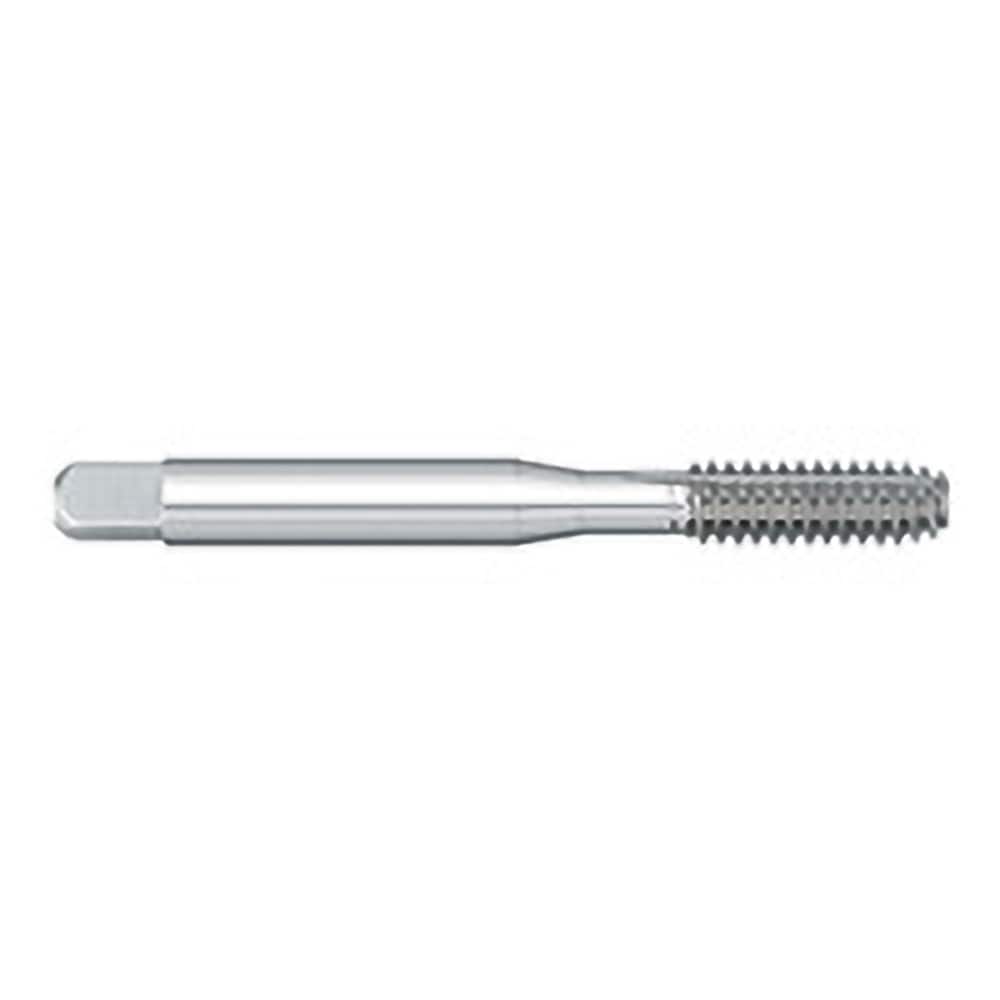

Titan USA - Thread Forming Taps; Thread Size (mm): M5x0.80 ; Class of Fit: 6H ; Thread Limit: D8 ; Chamfer: Plug ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19616093
Brand: Titan USA
Model #: TT89805
Product Specifications
Thread Forming Taps; Thread Size (mm): M5x0.80 ; Class of Fit: 6H ; Thread Limit: D8 ; Chamfer: Plug ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (mm) | M5x0.80 |
| Class of Fit | 6H |
| Thread Limit | D8 |
| Chamfer | Plug |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.37500 |
| Overall Length (Inch) | 2-3/8 |
| Tap Type | Thread Forming |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.8750 |
| Thread Length (Inch) | 7/8 |
| Series/List | 898 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (Inch) | 1/4 |
| Through Coolant | NonThrough Coolant |
