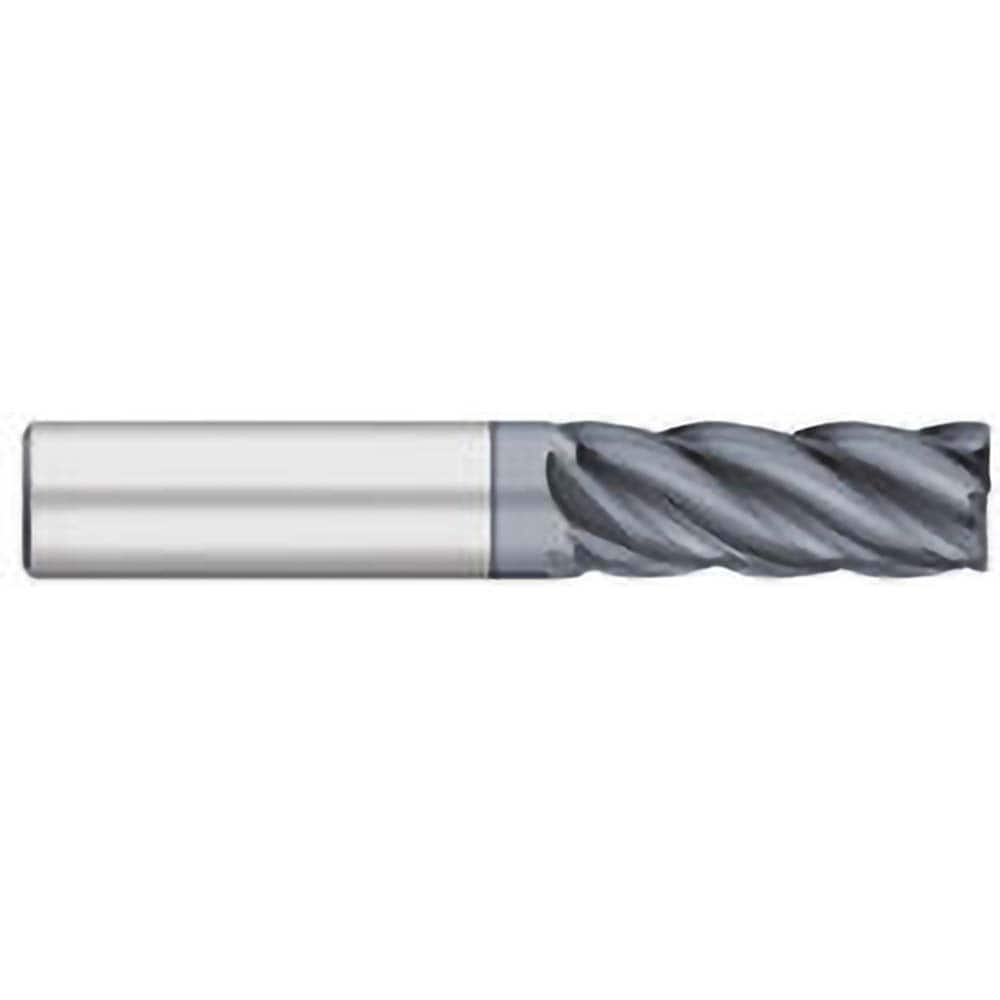

Corner Radius End Mill: 1/8″ Dia, 1/2″ LOC, 0.02″ Radius, 5 Flutes, Solid Carbide 2″ OAL, 1/8″ Shank Dia, 38 ° Helix, AlCromax Coated, Corner Radius End, Centercutting
Item #: 19523620
Brand: Titan USA
Model #: TC26406
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Length of Cut (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.50 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 38 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | AlCromax |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
