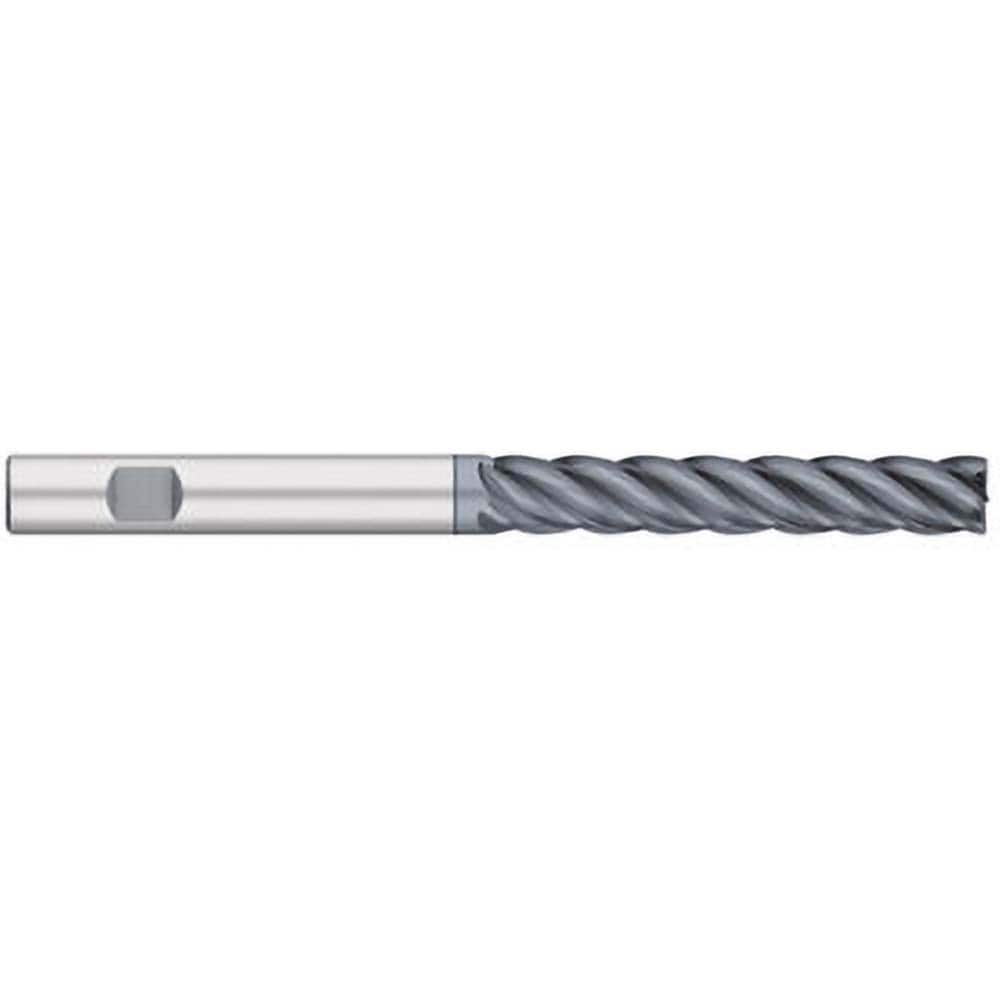

Titan USA - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0600 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 19523455
Brand: Titan USA
Model #: TC28029
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0600 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlCrO-MAX |
| Length of Cut (Inch) | 3 |
| Length of Cut (Decimal Inch) | 3.0000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 6 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
