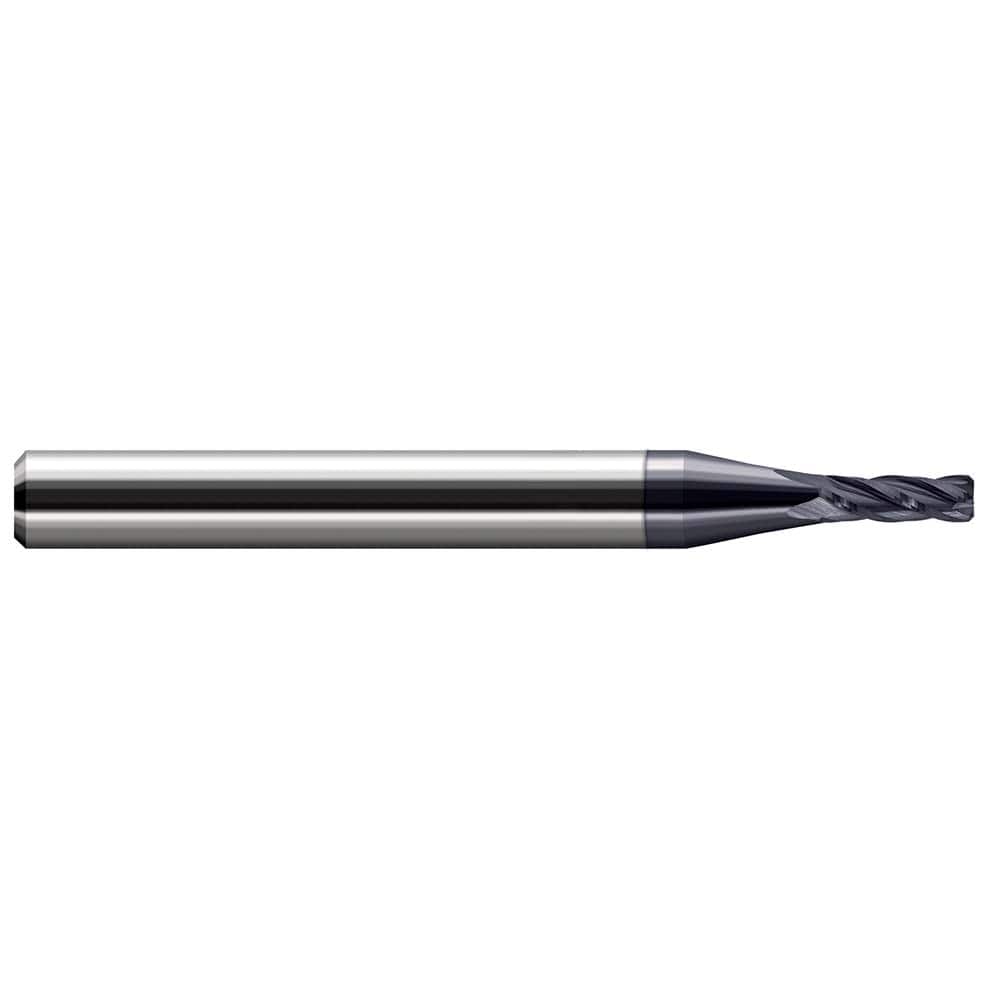

Corner Chamfer End Mill: 0.062″ Dia, 0.187″ LOC, 4 Flute, 0.005″ Chamfer Width, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 30 ° Helix, AlTiN Coated
Item #: 19453158
Brand: Harvey Tool
Model #: 805162-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0620 |
| Chamfer Width (Decimal Inch) | 0.0050 |
| Mill Diameter (Inch) | 1/16 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 3/16 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Chamfer |
| Flute Type | Helical |
| Helix Angle | 30 |
| Centercutting | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1870 |
