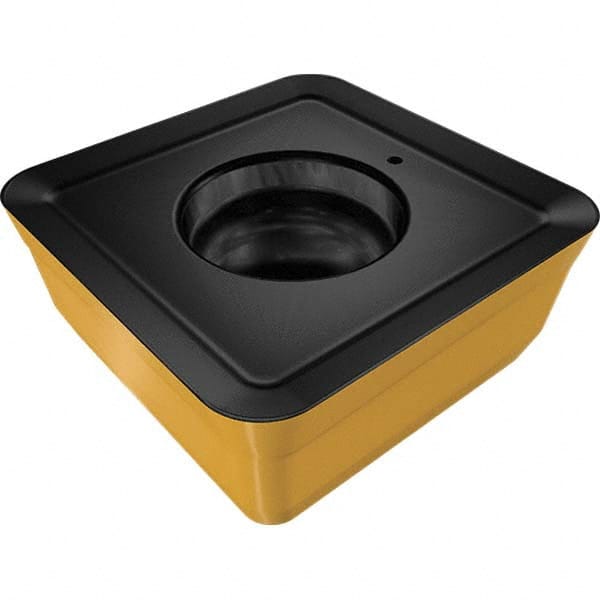

FFQ4SOMT170625HP IC808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 17.5mm Long x 6mm Thick
Item #: 19391952
Brand: Iscar
Model #: 3323583
Product Specifications
| Insert Style | SOMT |
| Insert Size Code | 170625 |
| Insert Size | 170625 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Series | MILL4FEED |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 1.50 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |
| Iso Code | FFQ4 SOMT 170625HP |
| Standards | ISO 13399 |
| Cutter Series Compatibility | FFQ4 |
| Chip Breaker | HP |
| Thickness (mm) | 6.00 |
| Coating/Finish | Coated |
| Length | 17.50 |
| Width (Decimal Inch - 4 Decimals) | 0.6890 |
| Width (Mm - 2 Decimals) | 17.50 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
| Length (Decimal Inch - 4 Decimals) | 0.6880 |
