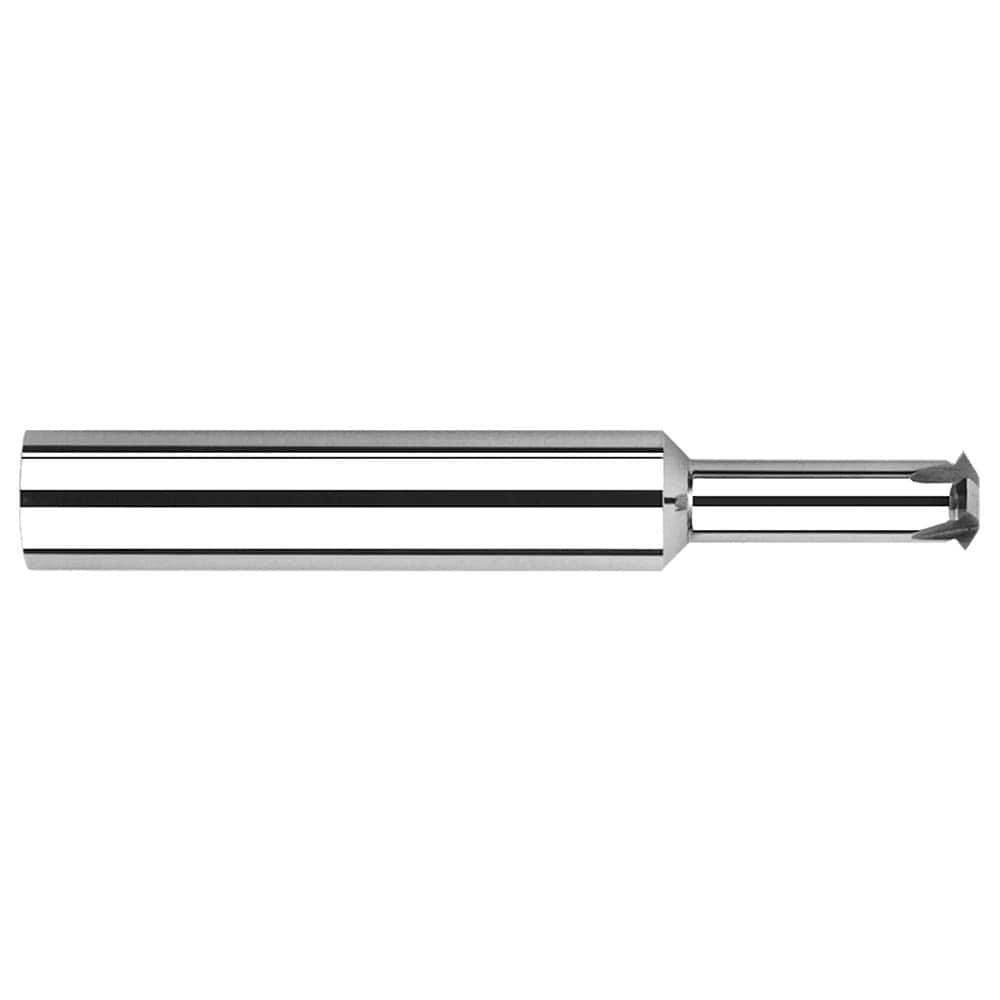

Harvey Tool - Single Profile Thread Mills; Maximum Threads Per Inch: 36 ; Minimum Threads Per Inch: 32 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): #8 ; Cutting Diameter (Inch): 0.1200 ; Shank Diameter (Inch): 1/4
Item #: 19316546
Brand: Harvey Tool
Model #: 932930
Product Specifications
Single Profile Thread Mills; Maximum Threads Per Inch: 36 ; Minimum Threads Per Inch: 32 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): #8 ; Cutting Diameter (Inch): 0.1200 ; Shank Diameter (Inch): 1/4
| Maximum Threads Per Inch | 36 |
| Minimum Threads Per Inch | 32 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | #8 |
| Cutting Diameter (Inch) | 0.1200 |
| Shank Diameter (Inch) | 1/4 |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Neck Diameter (Decimal Inch) | 0.0700 |
| Neck Length (Decimal Inch) | 0.2188 |
| Thread Size | #8-32 - #8-36 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | Uncoated |
