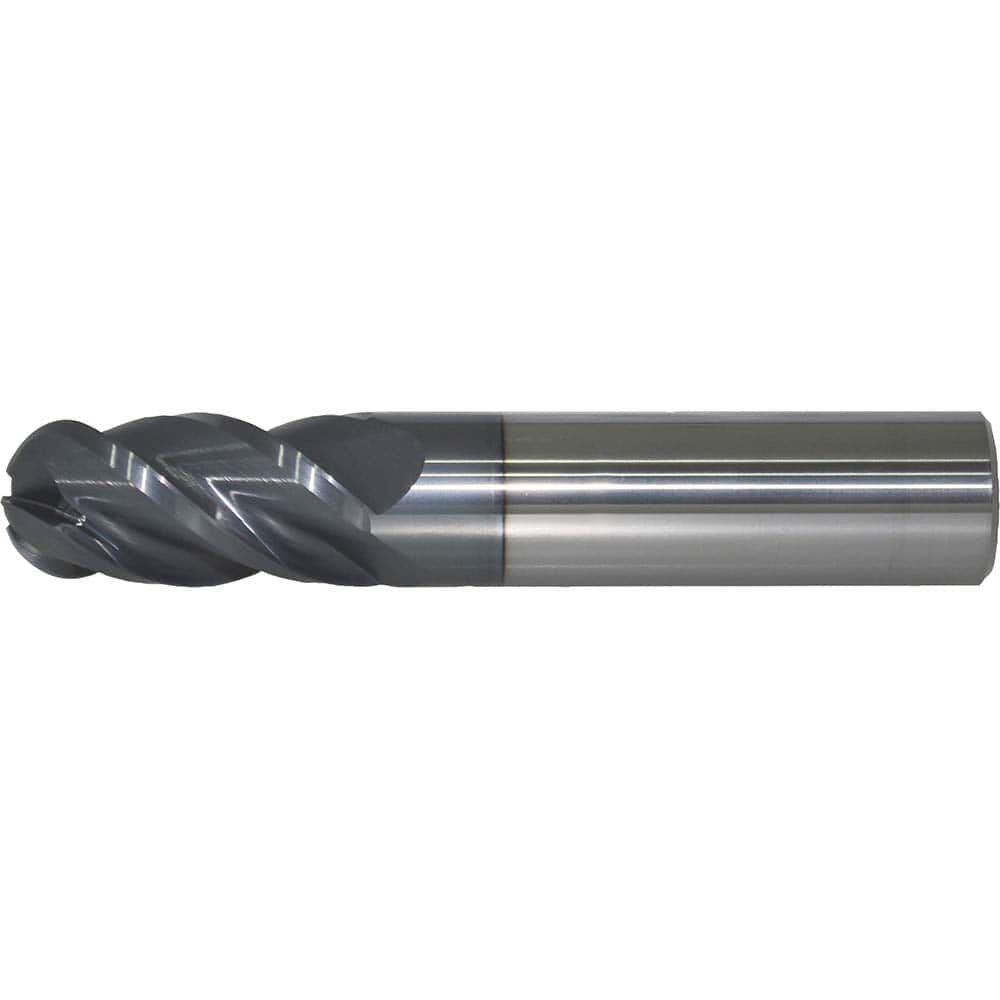

Ball End Mill: 0.0625″ Dia, 0.125″ LOC, 4 Flute, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 40 ° Helix, AlTiN Coated, Single End
Item #: 19250851
Brand: Accupro
Model #: 14556464
Product Specifications
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0625 |
| Length of Cut (Inch) | 1/8 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| Helix Angle | 40 |
| Undercutting | No |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 to 0.2000 |
| Variable Helix | No |
| Length Type | Stub |
| Helix Style | Medium |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Reach Length (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Shank Diameter Tolerance | -0.0001 to -0.0004 in |
| Maximum Helix Angle | 40.00 |
| Minimum Helix Angle | 40.00 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1250 |
