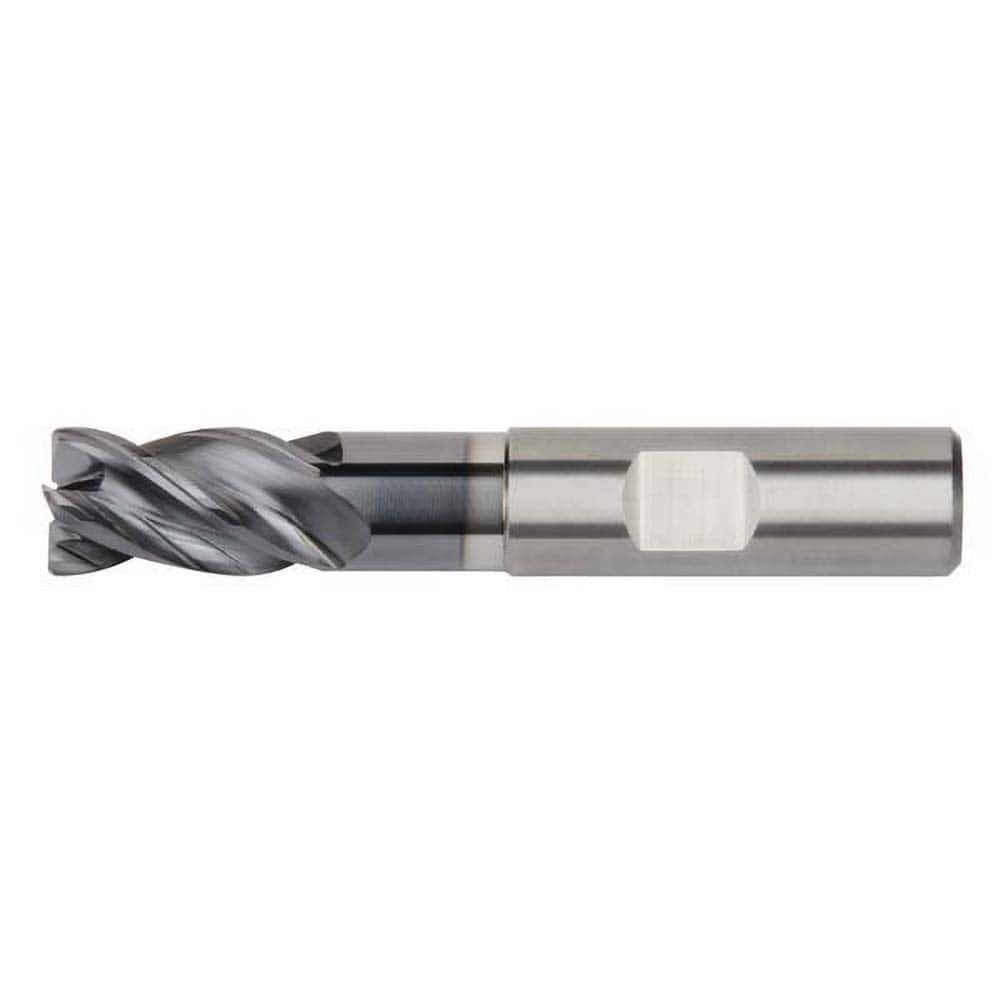

Corner Chamfer End Mill: 0.1181″ Dia, 4 Flute, Solid Carbide 57 mm OAL, 6 mm Shank Dia, AlTiN Coated, Centercutting
Item #: 19208909
Brand: Kennametal
Model #: 6767965
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1181 |
| Chamfer Width (mm) | 0.10 |
| Mill Diameter (mm) | 3.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 8.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Chamfer |
| Flute Type | Helical |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 2.82 |
| Reach Length (mm) | 16.50 |
| Overall Length (mm) | 57.00 |
| Cutting Direction | Right Hand |
| Series | HARVI |
| Single Or Double End | Single |
| Manufacturers Catalog Number | H1TE4CH0300N008HBM |
| Coating/Finish | AlTiN |
