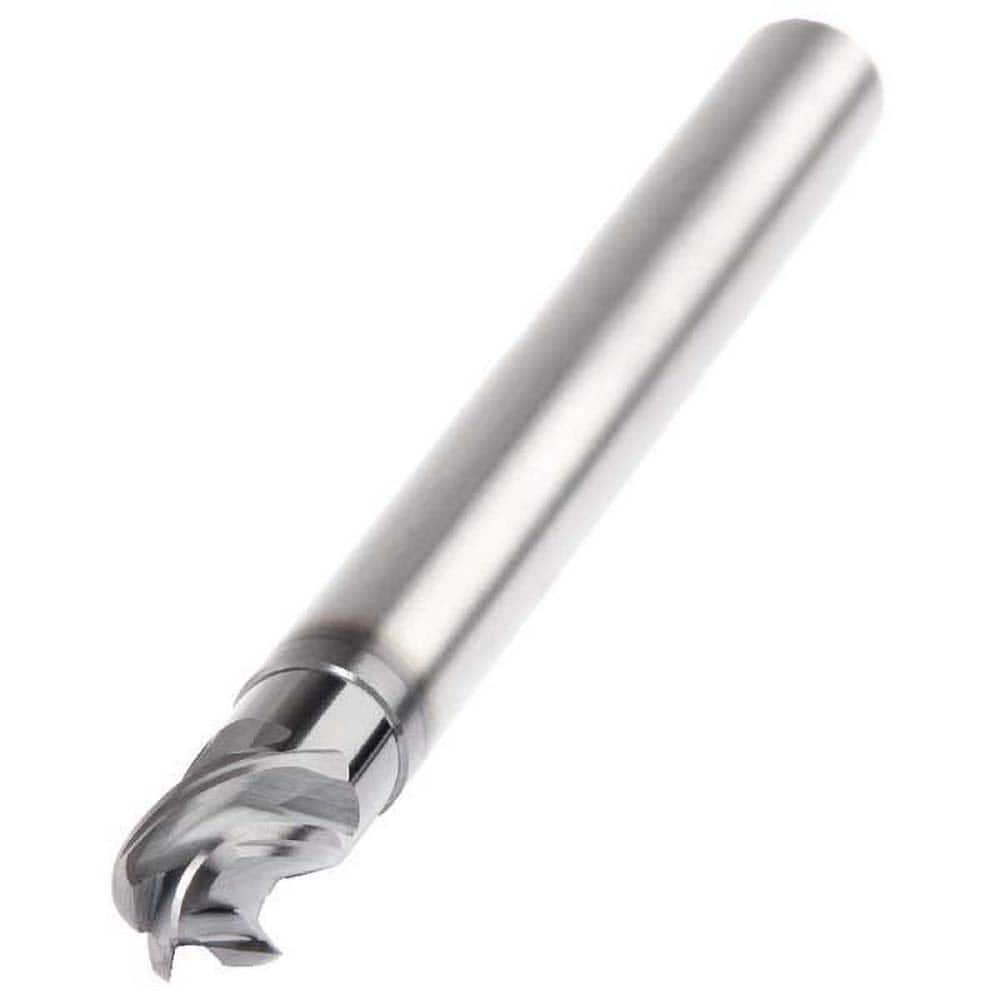

Ball End Mill: 0.4724″ Dia, 4 Flute, Solid Carbide 125 mm OAL, 12 mm Shank Dia, AlTiN Coated, Single End, Series HARVI
Item #: 19208669
Brand: Kennametal
Model #: 6768033
Product Specifications
Mill Diameter (Decimal Inch) | 0.4724 |
Mill Diameter (mm) | 12.00 |
Length of Cut (mm) | 12.00 |
End Mill Material | Solid Carbide |
Shank Diameter (mm) | 12.00 |
Neck Diameter (mm) | 11.28 |
Nose Radius (Decimal Inch) | 0.2362 |
Neck Length (mm) | 11.78 |
Reach Length (mm) | 24.00 |
Overall Length (mm) | 125.00 |
Material Grade | KCPM15 |
Flute Direction | Right Hand |
Cutting Direction | Right Hand |
Series | HARVI |
Flute Type | Helical |
Centercutting | Yes |
Single Or Double End | Single |
Number Of Flutes | 4 |
Coating/Finish | AlTiN |
Manufacturers Catalog Number | H1TE4BN1200N012HAM |
