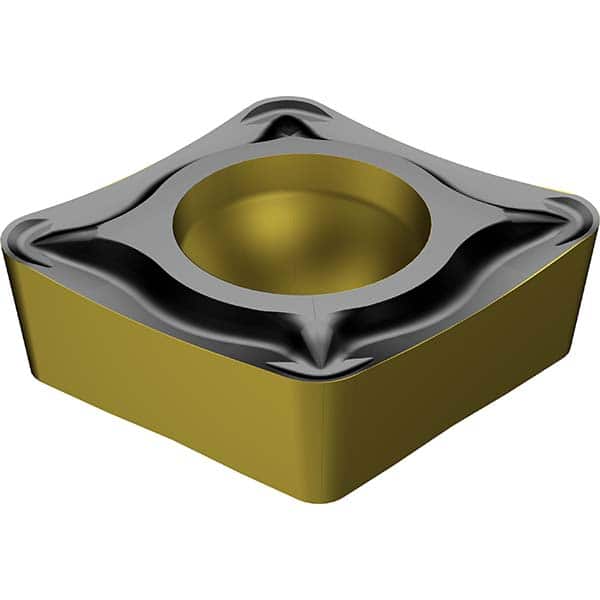

Sandvik Coromant - CCMT32.51-UM 4415 Carbide Turning Insert
Item #: 19100593
Brand: Sandvik Coromant
Model #: 7859085
Product Specifications
| Insert Style | CCMT |
| Insert Size | 09T3 |
| Material | Carbide |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.375 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4415 |
| Coating | TiCN+Al2O3+TiN |
| Chip Breaker | UM |
| ISO Number | CCMT 09 T3 04-UM 4415 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CCMT 3(2.5)1-UM 4415 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.4 |
| Shape | Diamond 80? |
