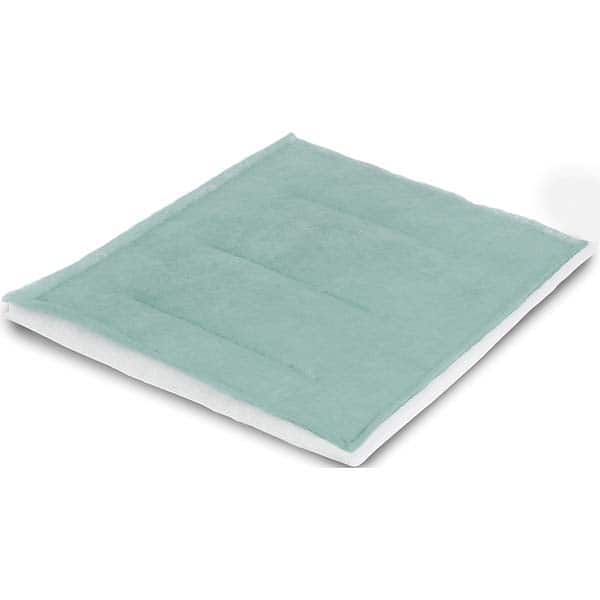

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Ring Panel Nominal Height (Inch): 14
Item #: 14945877
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Ring Panel ; Nominal Height (Inch): 14 ; Nominal Width (Inch): 20 ; Nominal Depth (Inch): 1 ; MERV Rating: 8 ; Media Material: Synthetic
| Filter Type | Ring Panel |
| Nominal Height (Inch) | 14 |
| Nominal Width (Inch) | 20 |
| Nominal Depth (Inch) | 1 |
| MERV Rating | 8 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 14.000 |
| Actual Width (Decimal Inch) | 20.000 |
| Actual Depth (Inch) | 13.5 |
| Maximum Air Flow (FPM) | 500 |
| Initial Resistance at FPM (Inches w.g.) | 0.06 (at 74 FPM); 0.10 (at 148 FPM); 0.15 (at 221 FPM); 0.21 (at 295 FPM); 0.27 ( at 369 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Maximum Temperature (F) | 120.000 |
| Frame Material | Wire |
| Standards Met | UL 900 |
