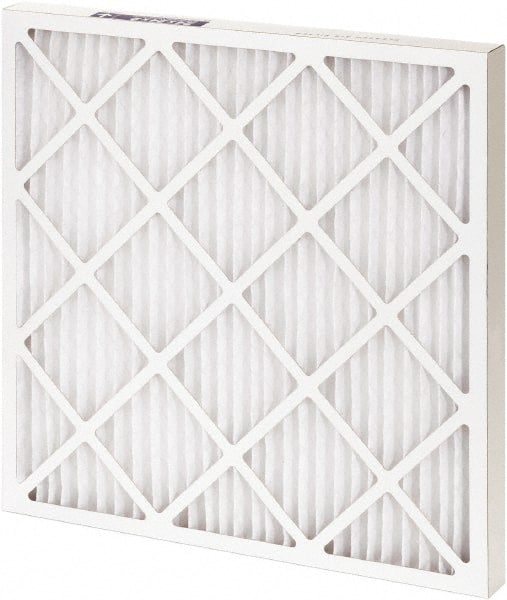

PRO-SOURCE - 24 x 30 x 1", MERV 8, 30 to 35% Efficiency, Wire-Backed Pleated Air Filter
Item #: 15165913
Brand: PRO-SOURCE
Model #:
| Product Specifications | |
|---|---|
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 24 |
| Nominal Width (Inch) | 30 |
| Nominal Depth (Inch) | 1 |
| Particle Capture Efficiency (%) | 30-35 |
| MERV Rating | 8 |
| Media Material | Antimicrobial Synthetic |
| Integrated Frame | Yes |
| Actual Height (Inch) | 23-1/2 |
| Actual Width (Inch) | 29-1/2 |
| Actual Depth (Inch) | 3/4 |
| Maximum Air Flow (FPM) | 300 |
| CFM | 1500 |
| Initial Resistance at FPM (Inches w.g.) | .14 (at 300 fpm); .21 (at 375 fpm) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 200 |
| Capacity | Standard |
| Pleats Per Square Foot | 12 |
| Frame Material | Beverage Board |
| Features | Antimicrobial |
| For Use With | Any Unit |
| Standards Met | UL 900; ASHRAE 52.2 |
