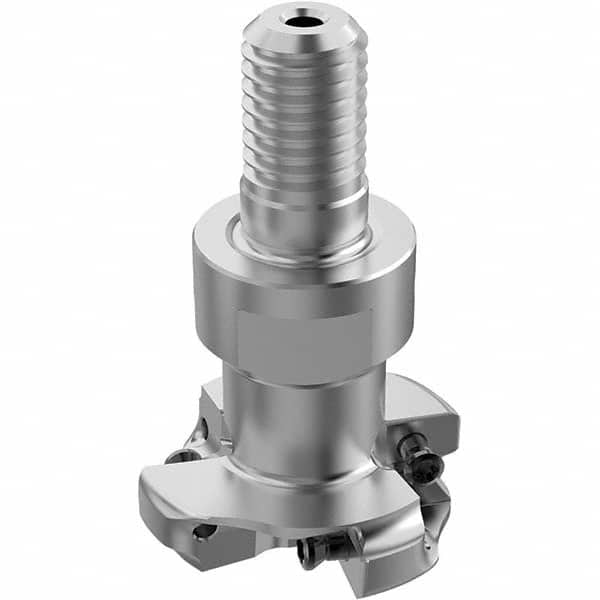

Seco - Combimaster Connection, 10mm Cutting Width, 8.5mm Depth of Cut, 32mm Cutter Diam, 4 Tooth Indexable Slotting Cutter
Item #: 96584115
Brand: Seco
Model #: 03277892
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 8.50 |
| Cutter Diameter (mm) | 32.00 |
| Modular Connection Size | M10 |
| Number of Teeth | 4 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17300 |
| Rake | Positive |
| Lead Angle | 90 |
