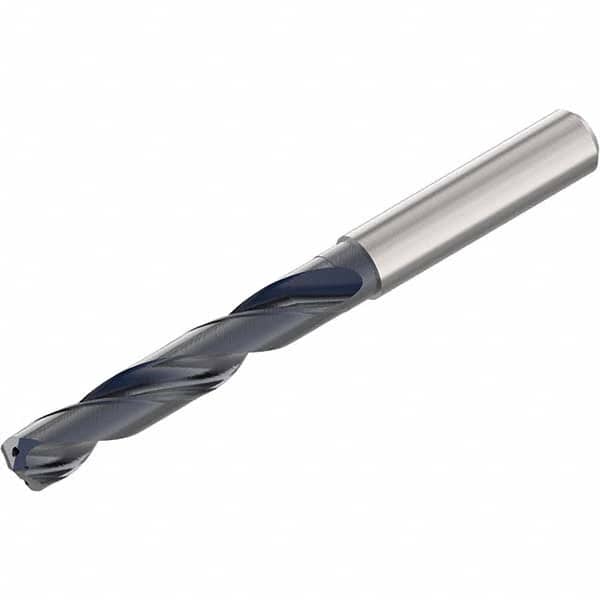

Jobber Length Drill Bit: 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD1105A
Item #: 18998617
Brand: Seco
Model #: 02898010
Product Specifications
| Drill Bit Size (mm) | 15.80 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 133.00 |
| Flute Length (mm) | 83.00 |
| Series | SD1105A |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48.00 |
| Tool Performance | High Performance |
| Standards | DIN 6537A |
| Drill Bit Size Range (mm) | 15.00 |
