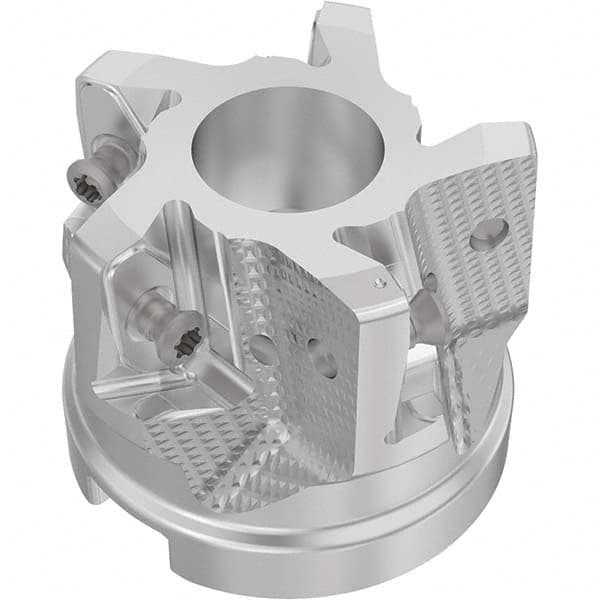

Indexable Square-Shoulder Face Mill: R220.64-0050-ZO16-5A, 22.0000″ Arbor Hole Dia, Uses 5, ZOMX16 Inserts, Through Coolant, Series R220.64
Item #: 18990861
Brand: Seco
Model #: 03290240
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 1.9686 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | ZOMX16 |
| Cutter Style | R220.64 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R220.64 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 10.4000 |
| Hub Diameter (mm) | 47.00 |
| Maximum RPM | 9000 |
| Cutting Edge Length (Decimal Inch) | 0.5910 |
| Minimum Insert Radius (Decimal Inch) | 0.0313 |
| Complete Insert Compatibility | ZOMX16 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
