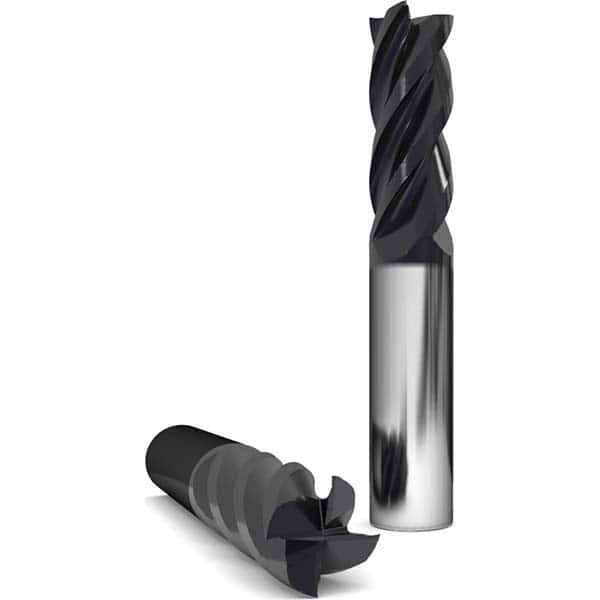

Corner Radius End Mill: 1/4″ Dia, 3/8″ LOC, 0.01″ Radius, 4 Flutes, Solid Carbide 2″ OAL, 1/4″ Shank Dia, 38 ° Helix, AlCr Coated, Corner Radius End, Centercutting, Series 1035
Item #: 18949669
Brand: GWS
Model #: 310078
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (mm) | 6.35 |
| Length of Cut (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Length of Cut (mm) | 9.52 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.25 |
| Overall Length (Inch) | 2 |
| Overall Length (mm) | 50.80 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 1035 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | AlCr |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
