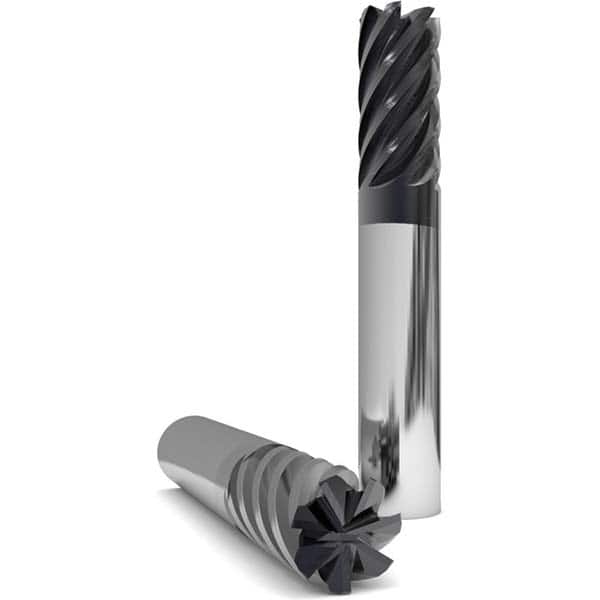

Corner Radius End Mill: 1″ Dia, 1-1/2″ LOC, 0.09″ Radius, 7 Flutes, Solid Carbide 4″ OAL, 3/4″ Shank Dia, 38 ° Helix, nACo Coated, Corner Radius End, Centercutting, Series 1035
Item #: 18947655
Brand: GWS
Model #: 122873
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (mm) | 25.40 |
| Length of Cut (Inch) | 1-1/2 |
| Corner Radius (Decimal Inch) | 0.0900 |
| Length of Cut (mm) | 38.10 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.75 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 1035 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | nACo |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
