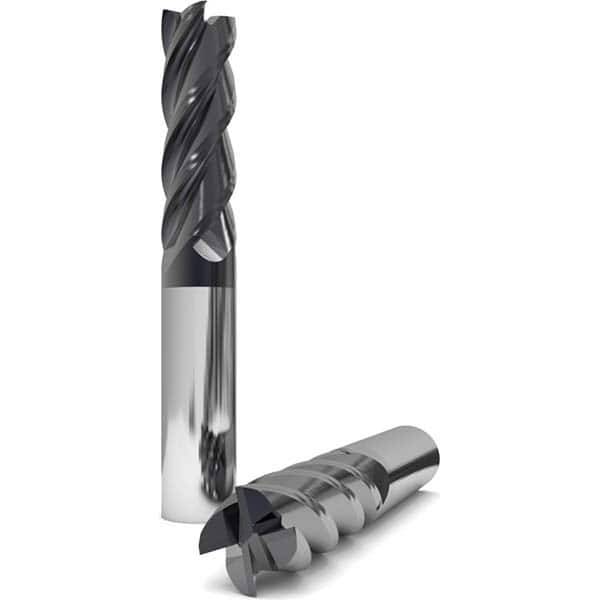

Corner Radius End Mill: 3/16″ Dia, 0.312″ LOC, 0.005″ Radius, 4 Flutes, Solid Carbide 2″ OAL, 3/16″ Shank Dia, 38 ° Helix, nACo Coated, Corner Radius End, Centercutting, Series 1035
Item #: 18947507
Brand: GWS
Model #: 120543
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (mm) | 4.76 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Length of Cut (mm) | 7.92 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.1875 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 1035 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | nACo |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3120 |
