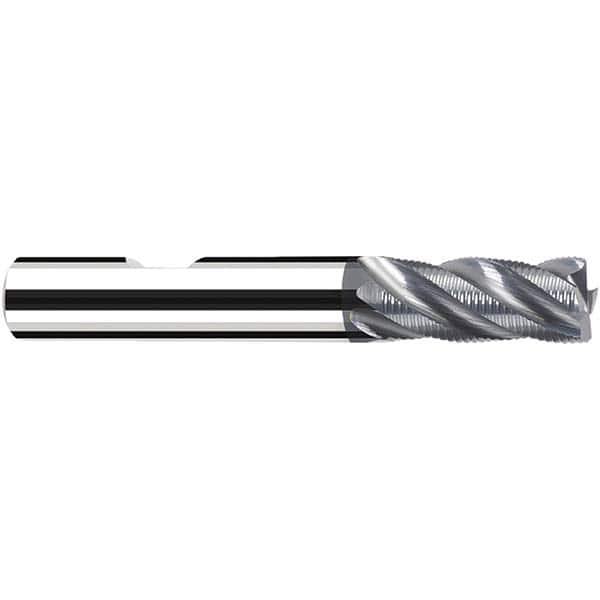

Square End Mill: 3/8'' Dia, 1'' LOC, 3/8'' Shank Dia, 3'' OAL, 4 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 38 ° Helix, Centercutting, RH Cut, RH Flute, Series SupraCarb
Item #: 18911149
Brand: Fraisa
Model #: P15979432
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 3/8; 3/8 in |
| Shank Diameter (mm) | 3/8 in |
| Shank Diameter (Decimal Inch) | 3/8 in |
| Material | Solid Carbide |
| Finish/Coating | Polychrom |
| Overall Length (mm) | 3 in |
| Overall Length (Inch) | 3; 3 in |
| Centercutting | Yes |
| Helix Angle | 38.00; 38 ? |
| Extended Reach | No |
| Variable Helix | No |
| Material Grade | HM-MG10 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | e8 |
| Mill Diameter Tolerance (mm) | e8 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Overall Length (Decimal Inch) | 3 in; 3.0000 |
| Series/List | SupraCarb |
| Chipbreaker | No |
