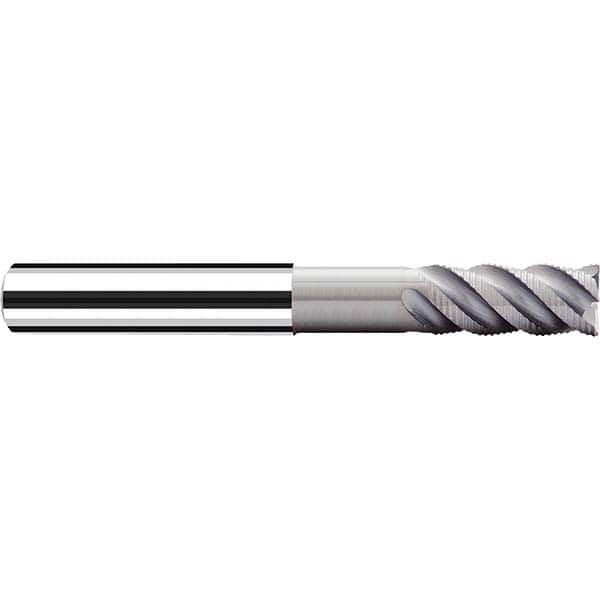

Square End Mill: 1/4'' Dia, 3/4'' LOC, 1/4'' Shank Dia, 3-1/2'' OAL, 4 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 45 ° Helix, Centercutting, RH Cut, RH Flute, Series NX-FP
Item #: 18905018
Brand: Fraisa
Model #: P5974312
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 1/4 in; 1/4 |
| Shank Diameter (mm) | 1/4 in |
| Shank Diameter (Decimal Inch) | 1/4 in |
| Material | Solid Carbide |
| Finish/Coating | Polychrom |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Helix Angle | 45.00 |
| Extended Reach | Yes |
| Variable Helix | No |
| Material Grade | HM-XR |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Long |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.5000 |
| Series/List | NX-FP |
| Chipbreaker | No |
