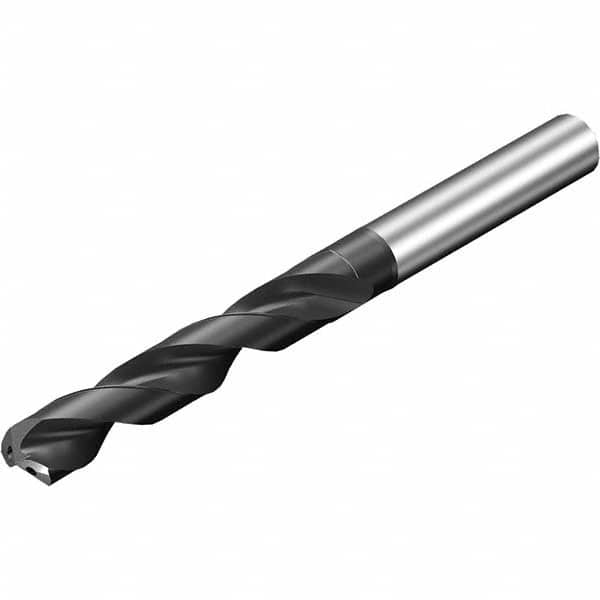

Screw Machine Length Drill Bit: 0.2047″ Dia, 140 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 18755876
Brand: Sandvik Coromant
Model #: 7420046
Product Specifications
| Drill Bit Size (mm) | 5.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | CoroDrill 860 |
| Maximum Drilling Depth (mm) | 16.50 |
| Drill Point Length (mm) | 0.95 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Number | DIN 6537K |
| Material Grade | 1210 |
