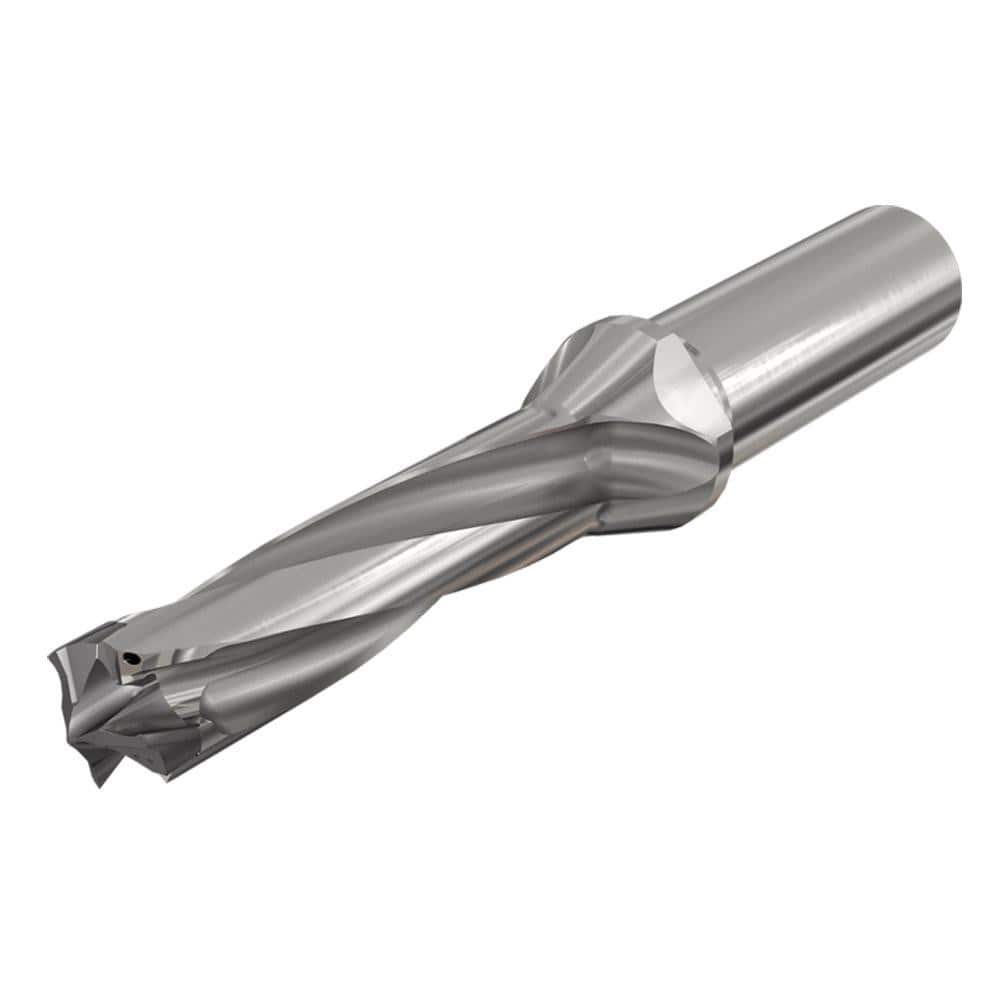

Replaceable Tip Drill: 0.591 to 0.626'' Drill Dia, 1.91″ Max Depth, 0.75'' Straight-Cylindrical Shank Uses H3P Inserts, 4.97″ OAL, Through Coolant
Item #: 18751180
Brand: Iscar
Model #: 3363042
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (Decimal Inch) | 0.6260 |
| Maximum Drill Depth (Decimal Inch) | 1.9100 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 15 |
| Overall Length (mm) | 4.97 |
| Overall Length (Decimal Inch) | 4.9700 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 1.9100 |
| Body Length (Decimal Inch) | 3.0010 |
| Shank Length (Decimal Inch) | 1.9660 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
