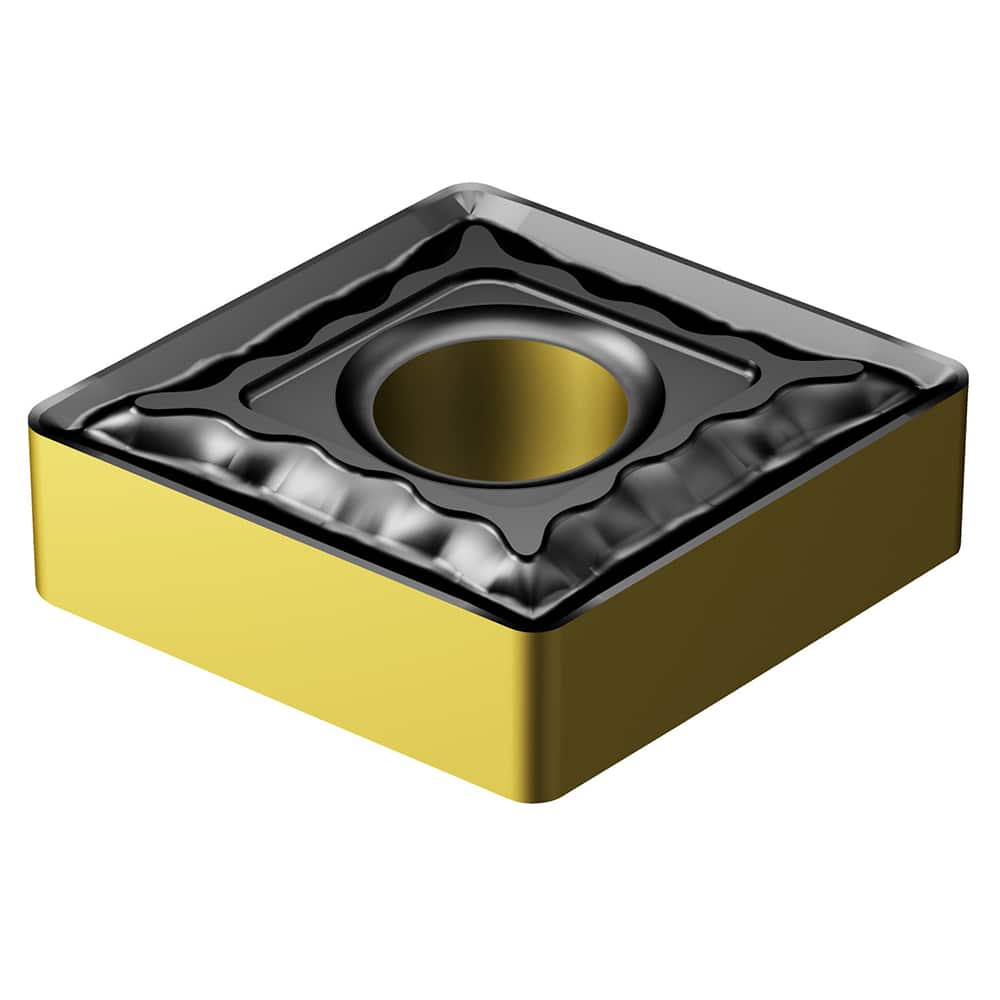

Sandvik Coromant - CNMG432-QM S205 Carbide Turning Insert
Item #: 18725556
Brand: Sandvik Coromant
Model #: 8003540
Product Specifications
| Insert Style | CNMG |
| Insert Size | 120408 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | S205 |
| Coating | Al2O3/TiN/TiCN |
| ISO Number | CNMG 12 04 08-QM S205 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG 432-QM |
| Primary Workpiece Material | S |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | Al2O3/TiN/TiCN |
| Series/List | T-Max P |
| Shape | Diamond |
