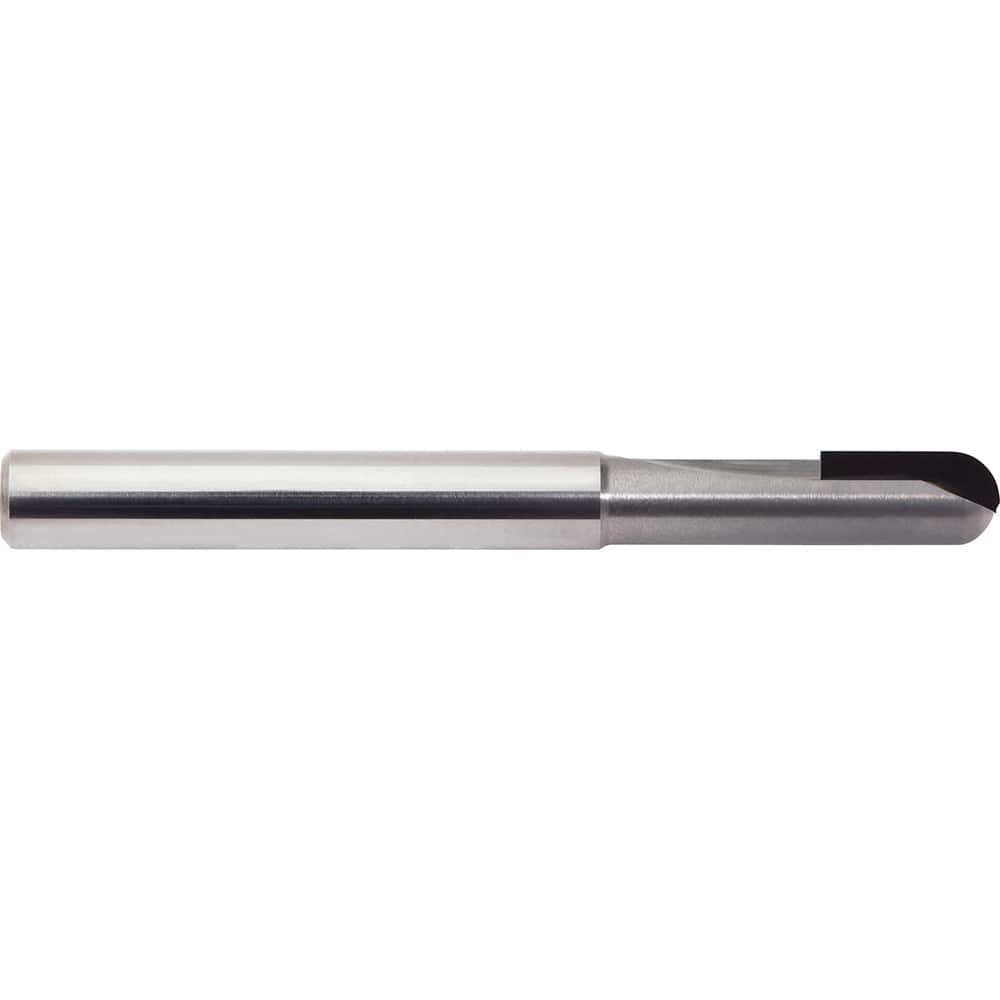

M.A. Ford - Ball End Mills; Mill Diameter (mm): 5.00 ; Mill Diameter (Decimal Inch): 0.1969 ; Number of Flutes: 1 ; Length of Cut (mm): 8.0000 ; Length of Cut (Decimal Inch): 0.3200 ; Material: PCD
Item #: 18723981
Brand: M.A. Ford
Model #: DE1BM0500
Product Specifications
Ball End Mills; Mill Diameter (mm): 5.00 ; Mill Diameter (Decimal Inch): 0.1969 ; Number of Flutes: 1 ; Length of Cut (mm): 8.0000 ; Length of Cut (Decimal Inch): 0.3200 ; Material: PCD
| Mill Diameter (mm) | 5.00 |
| Mill Diameter (Decimal Inch) | 0.1969 |
| Number of Flutes | 1 |
| Length of Cut (mm) | 8.0000 |
| Length of Cut (Decimal Inch) | 0.3200 |
| Material | PCD |
| Overall Length (mm) | 50.0000 |
| Overall Length (Decimal Inch) | 1.96850 |
| Shank Diameter (mm) | 5.0000 |
| Finish/Coating | Polycrystaline Diamond |
| Single or Double End | Single |
| Helix Angle | 0 |
| Variable Index | No |
| Variable Helix | No |
| Neck Length (Decimal Inch) | 20.0000 |
| Nose Radius (Decimal Inch) | 0.0984 |
| Flute Type | Straight |
| Length Type | Standard |
| Series/List | DEB |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
