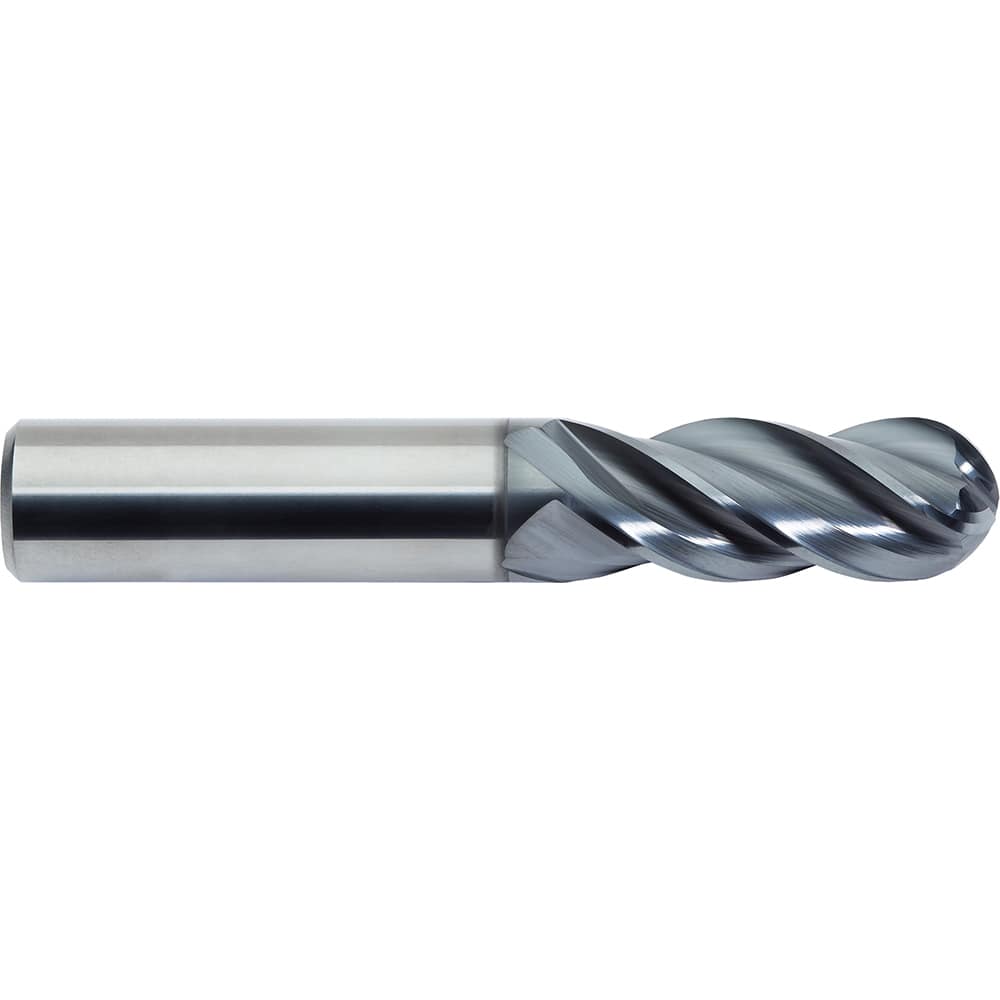

Ball End Mill: 0.4375″ Dia, 0.5″ LOC, 4 Flute, Solid Carbide 2-1/2″ OAL, 7/16″ Shank Dia, 35 & 38 ° Helix, ALtima Blaze Coated, Single End, Series 279
Item #: 18723924
Brand: M.A. Ford?
Model #: 27943700B
Product Specifications
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 35; 38 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | Yes |
| Length Type | Stub |
| Helix Style | High; Medium |
| Shank Diameter (Inch) | 7/16 |
| Nose Radius (Decimal Inch) | 0.2188 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Maximum Helix Angle | 38.00 |
| Minimum Helix Angle | 35.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 279 |
| Flute Type | Helical |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | ALtima Blaze |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
